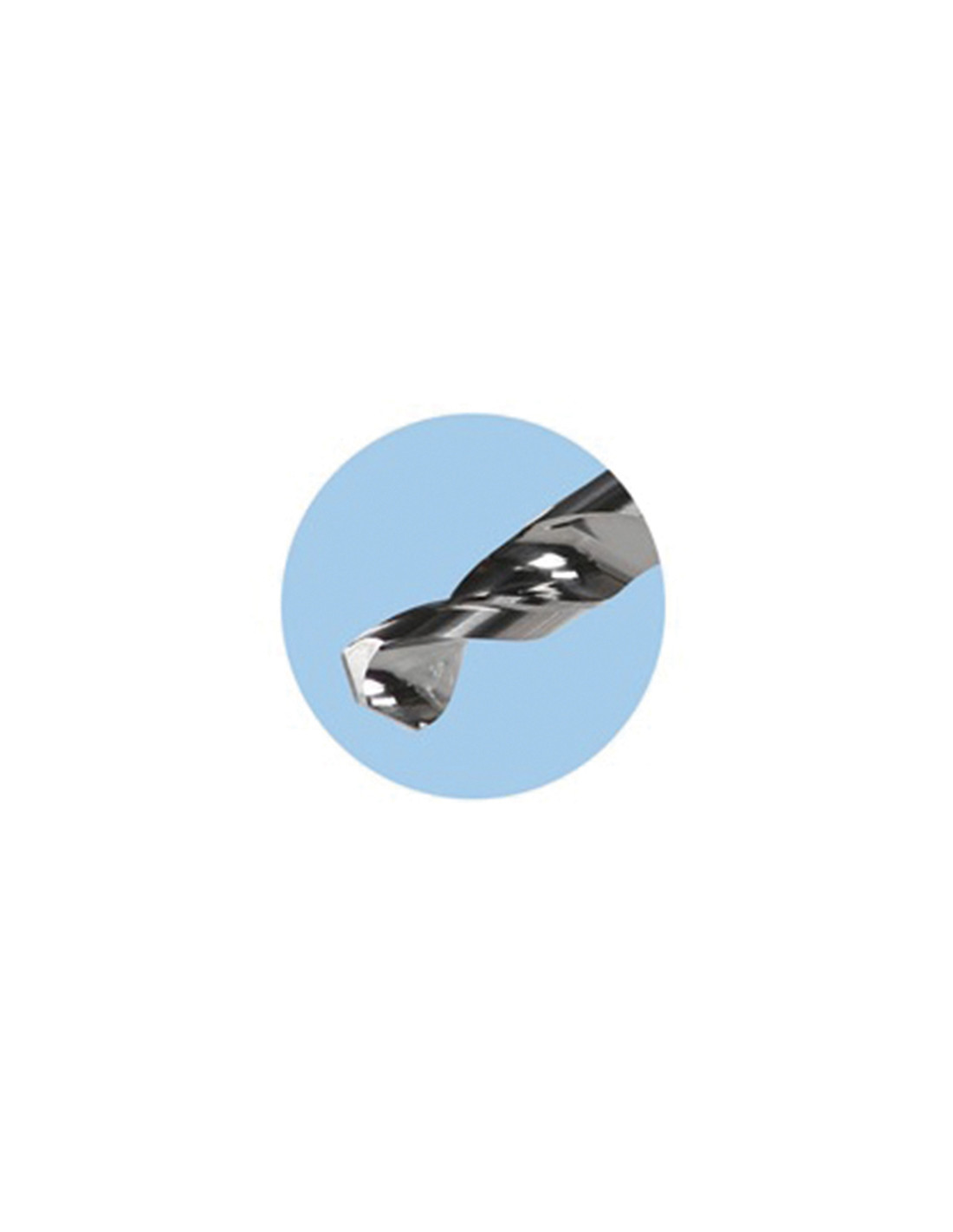

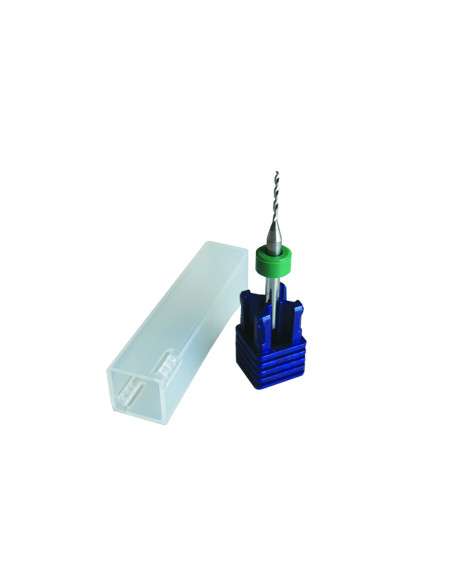

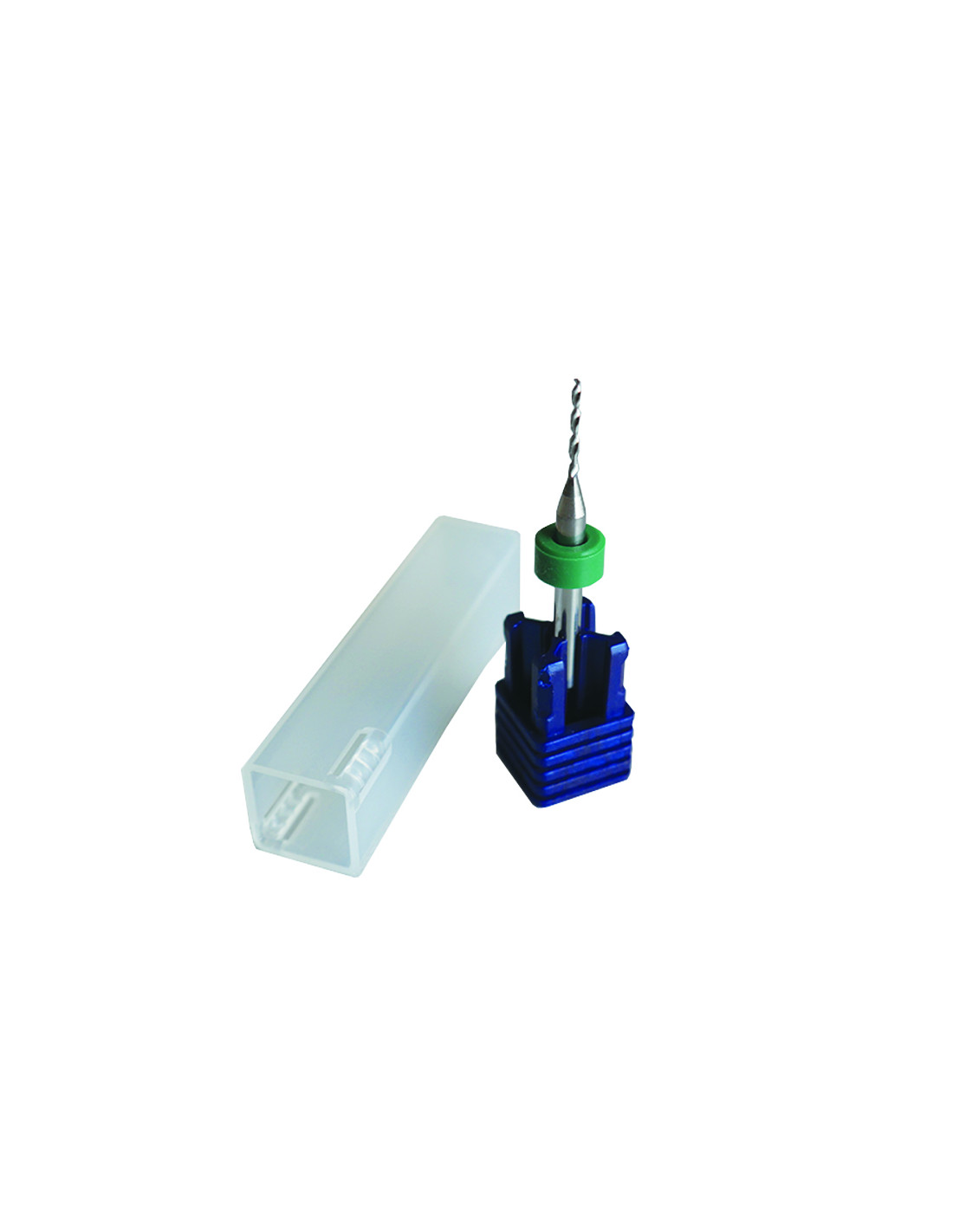

Drill bit 2mm

P2J-D-200a
MIPEC
In stock 145 pcs
60.00 CZK
Tax excluded
72.60 CZK Tax included

Product features
Type of instrument:
Drill
Diameter of the tool:
2 mm
Tool length:
38 mm
Shank diameter:
3.175 mm

The 2.0mm drill bit is designed for drilling through holes with high positional accuracy and is particularly suitable for FR4 material.

Advantages:

High wall surface quality.
High positional accuracy.
Efficient chip removal.

Recommended machining parameters:

Spindle speed: 24000RPM
Feed rate: 1.9m/min
Stroke: 20m/min

*Recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
