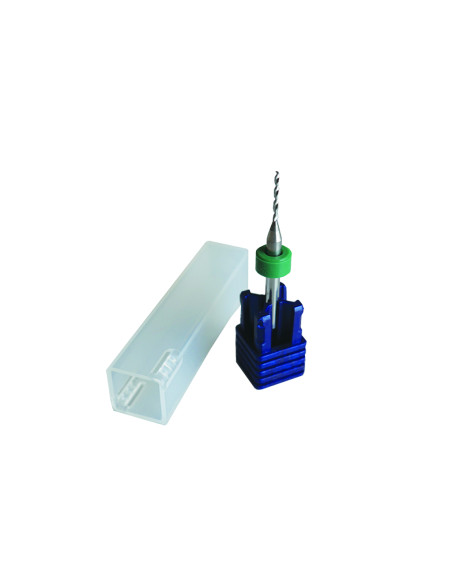

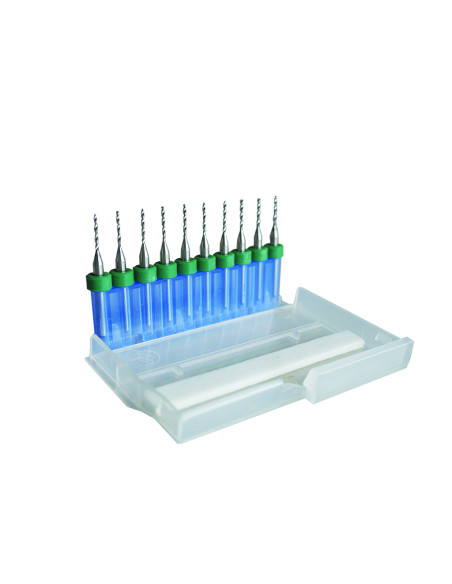

Drill bit 3mm
P2J-D-300a
MIPEC
Product features
Drill
3 mm
38 mm
3.175 mm
The 3.0mm drill bit is designed for drilling through holes with high positional accuracy and is particularly suitable for FR4 material.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 21000RPM
Feed rate: 1.7m/min
Stroke: 20m/min
*Recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 21000RPM
Feed rate: 1.7m/min
Stroke: 20m/min
*Recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
