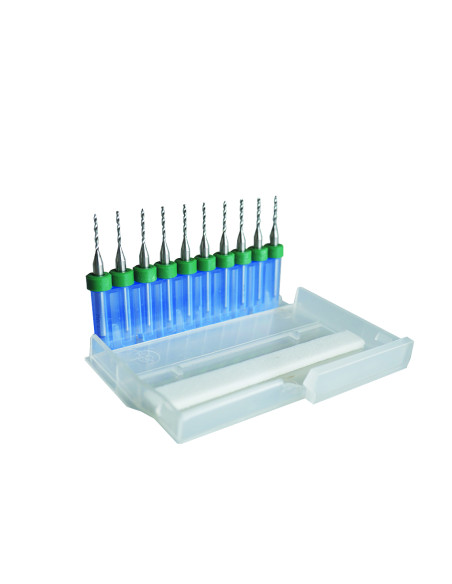

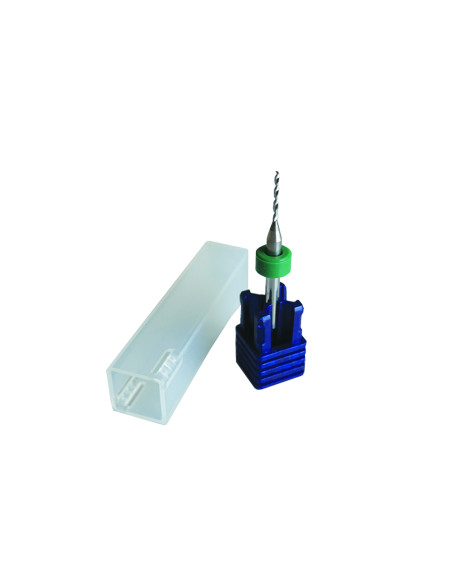

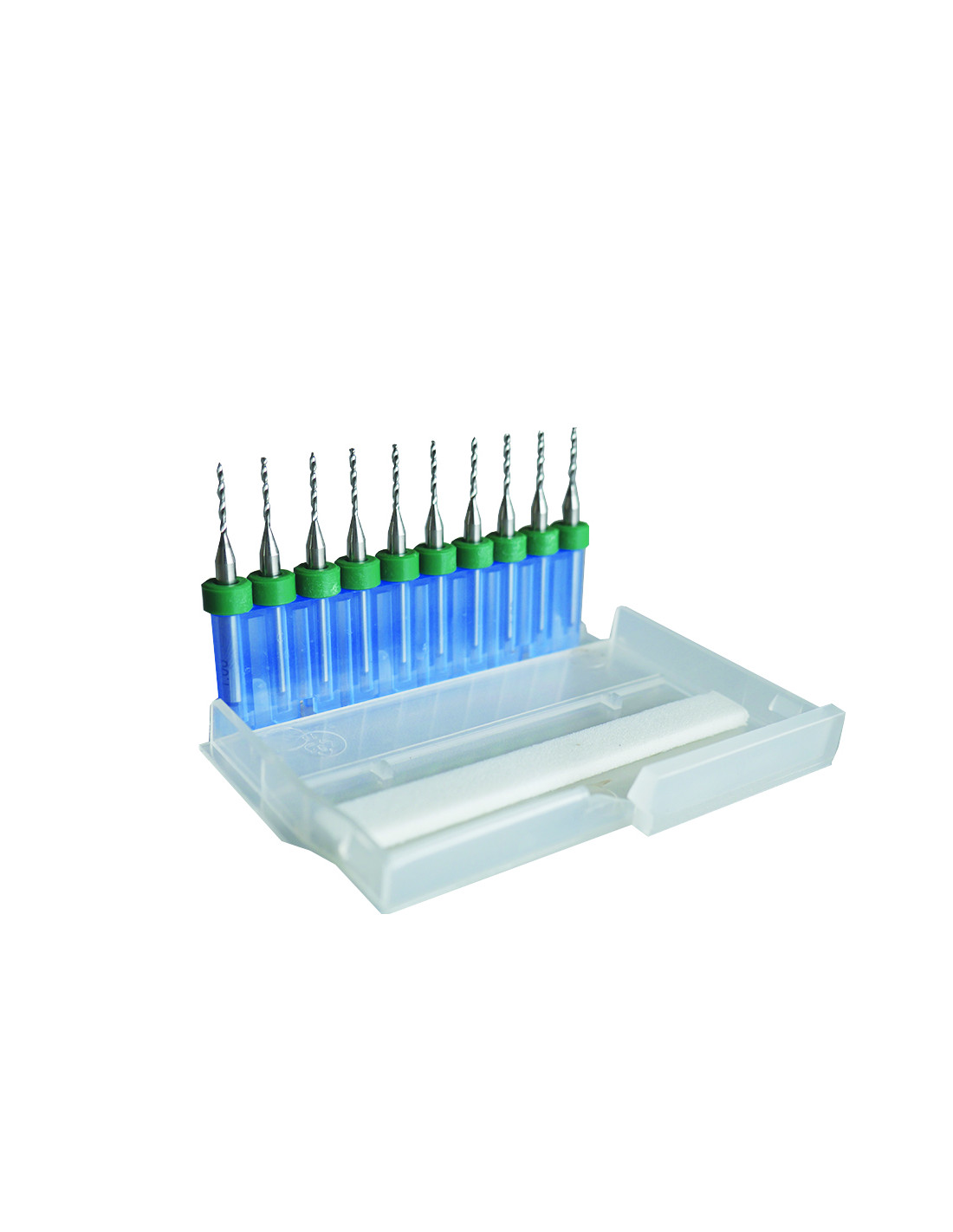

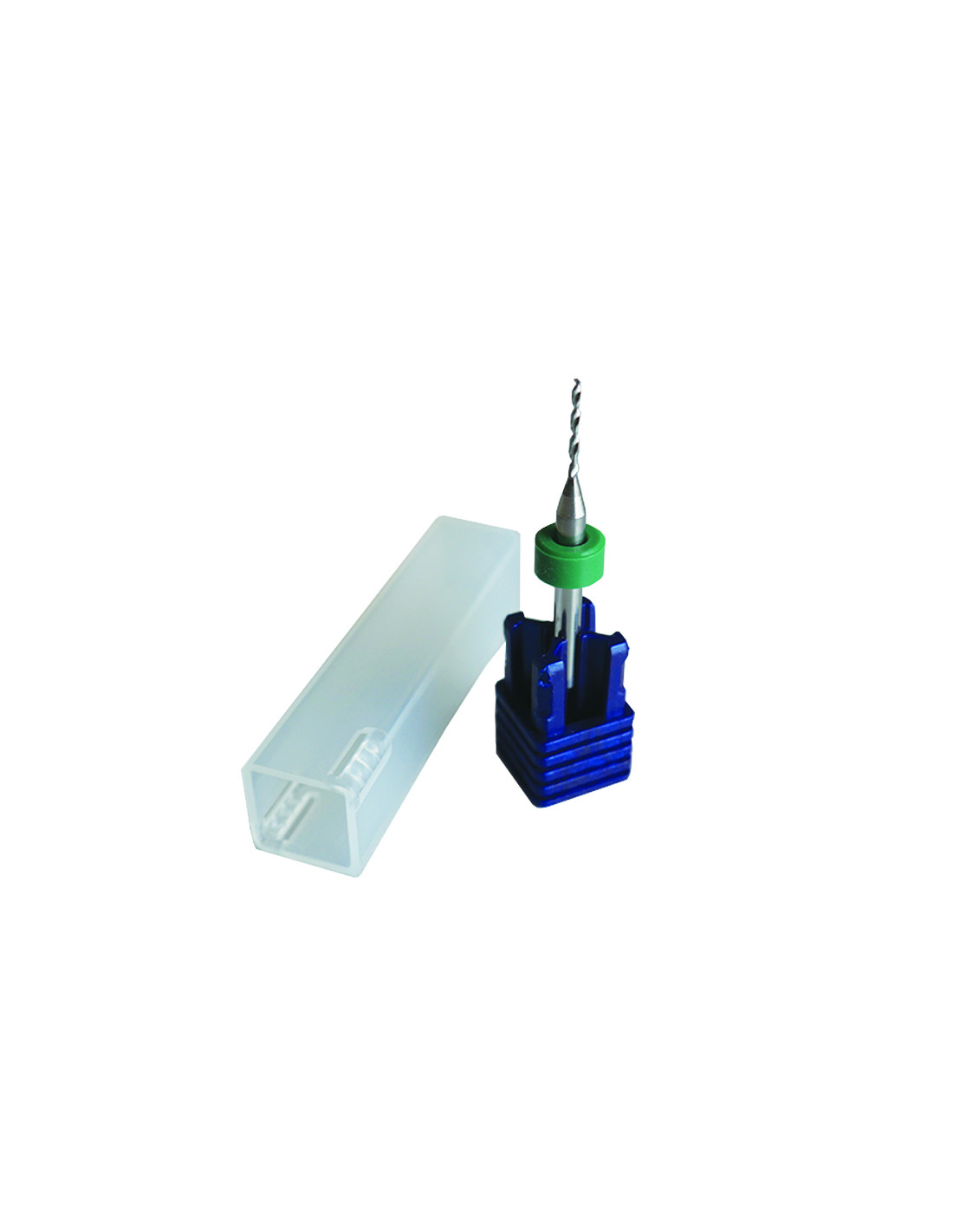

Drill 1mm
P2J-D-100a
MIPEC
Product features
Drill
1 mm
38 mm
3.175 mm

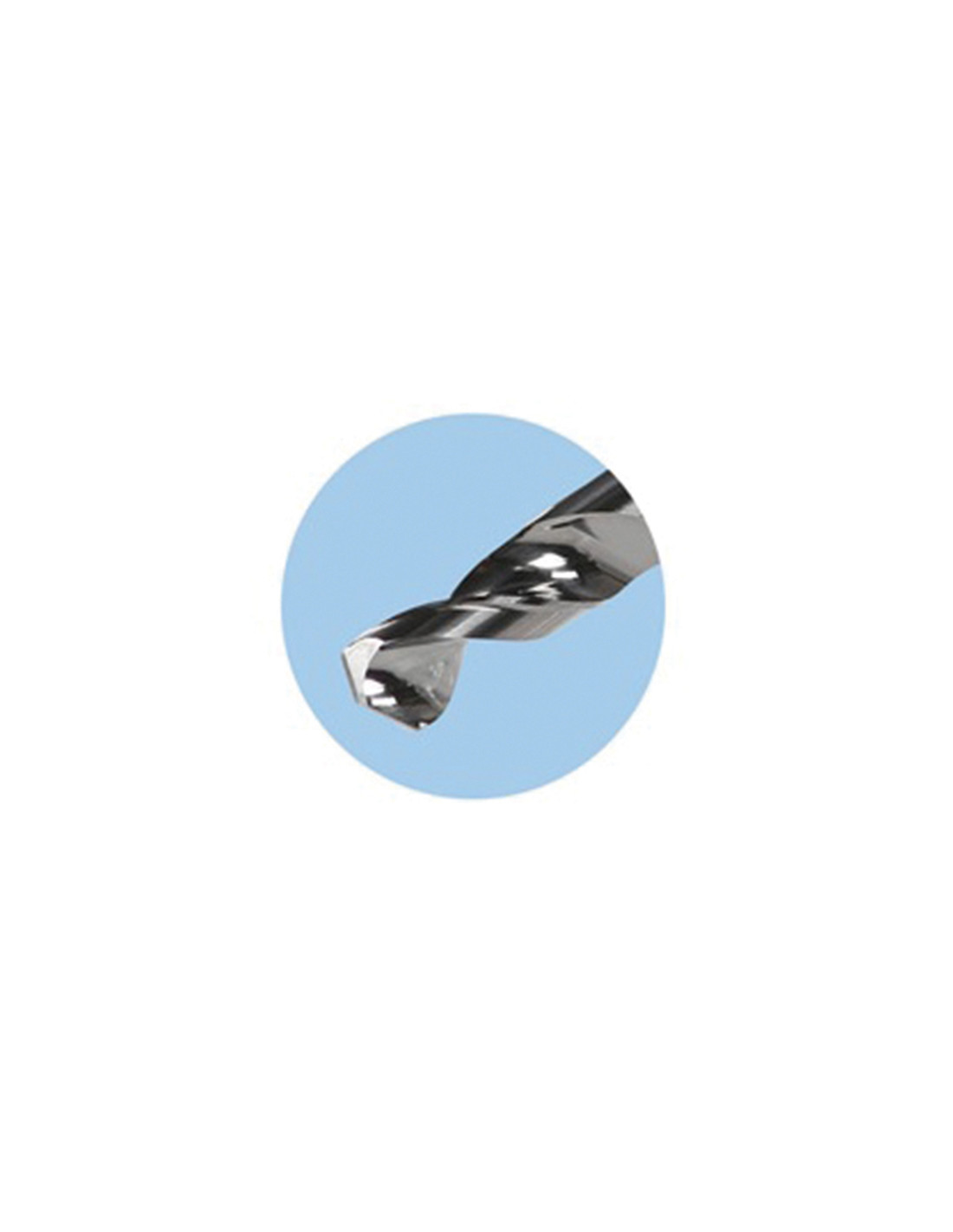

The 1.0mm drill bit is designed for drilling through holes with high positional accuracy and is particularly suitable for FR4 material.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 48000RPM
Feed rate: 3.7m/min
Stroke: 20m/min
*The recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 48000RPM
Feed rate: 3.7m/min
Stroke: 20m/min
*The recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
