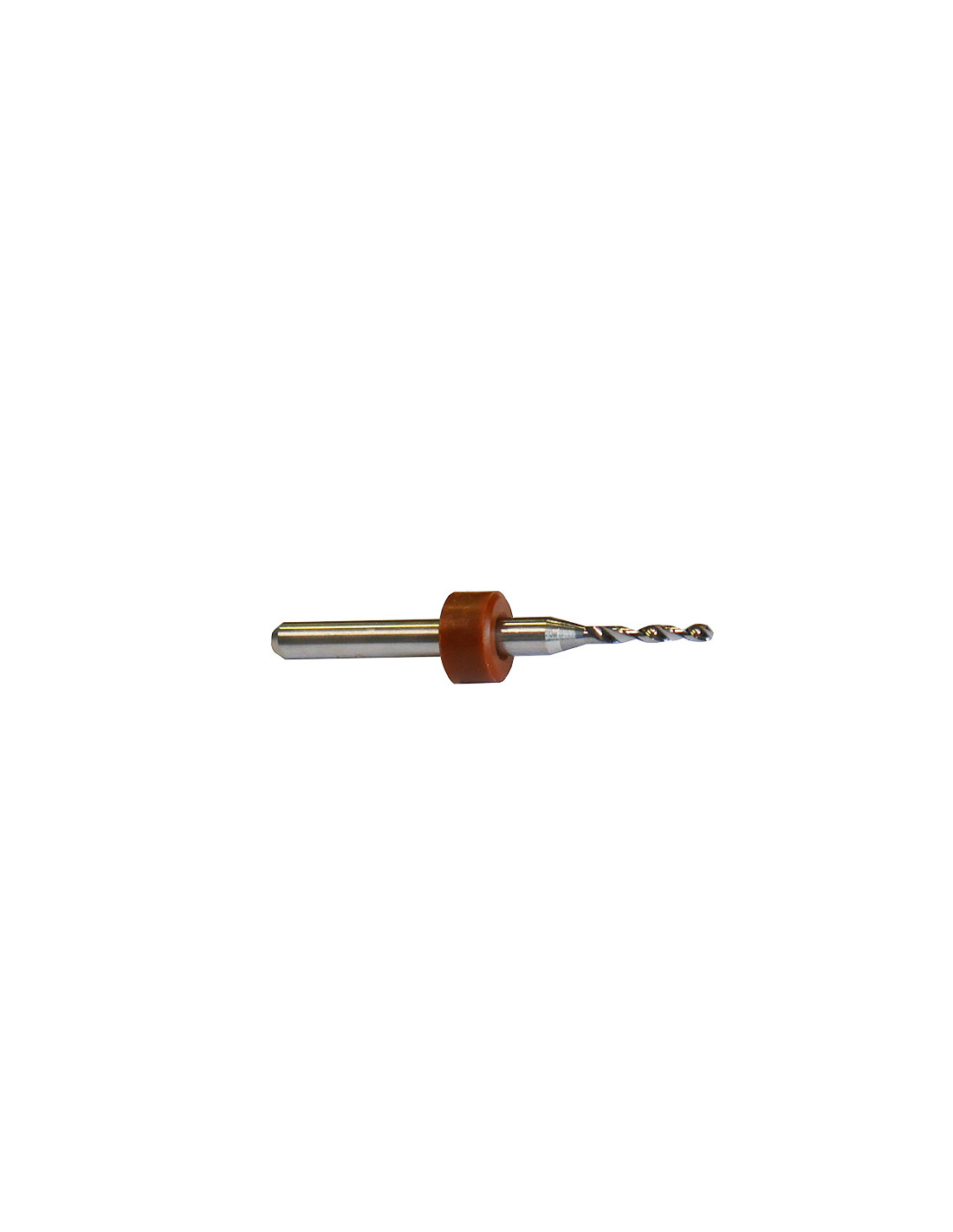

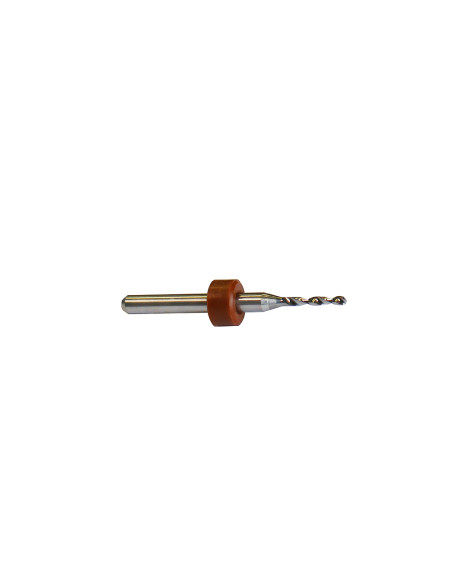

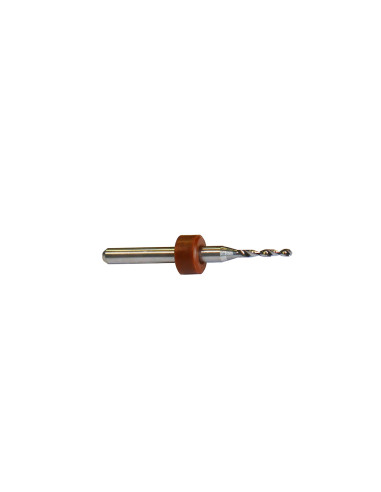

Drill bit 1,5mm
P2J-D-150a
MIPEC
Product features
Drill
1.5 mm
38 mm
3.175 mm
The 1.5mm drill bit is designed for drilling through holes with high positional accuracy and is particularly suitable for FR4 material.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 33000RPM
Feed rate: 2.7m/min
Stroke: 20m/min
*Recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 33000RPM
Feed rate: 2.7m/min
Stroke: 20m/min
*Recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
