Product features
1337 x 1010 x 1752 mm (W x D x H)
230 V
420 x 350 mm
600 W
4
Yes

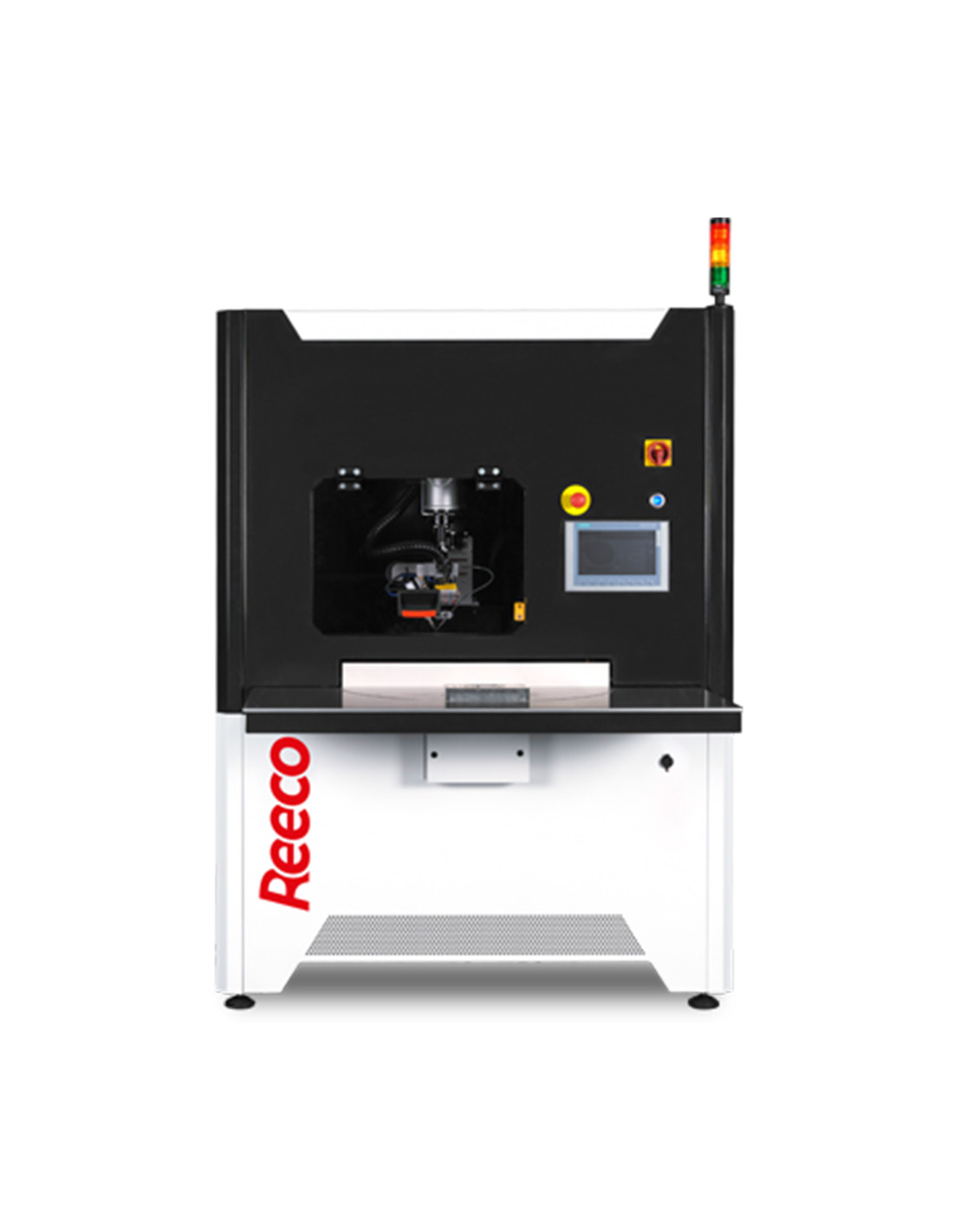

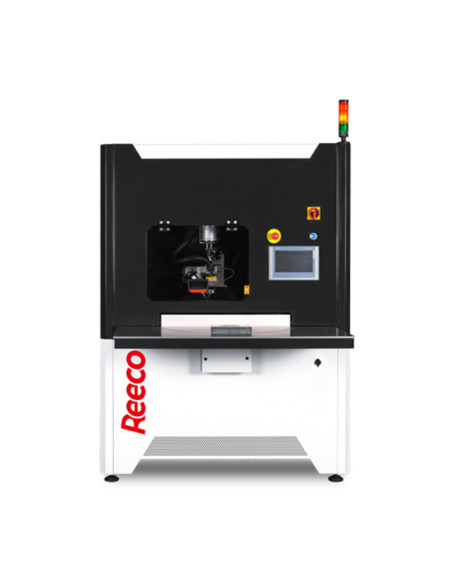

The Reeco RE-2600 soldering robot with rotary table is designed for precise and repetitive soldering of pin components. The rotary aluminium table ensures production preparation, production, inspection and storage in one place.

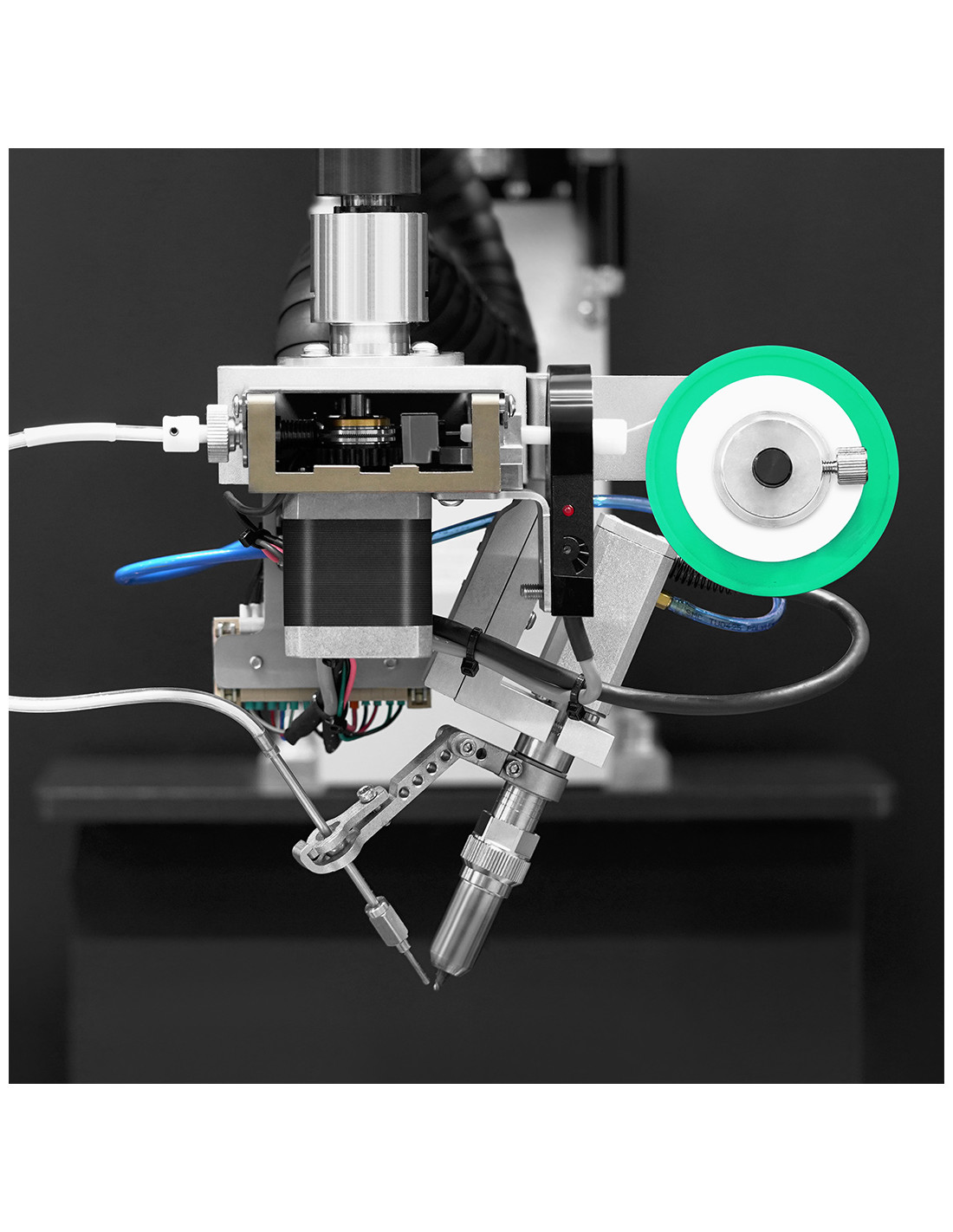

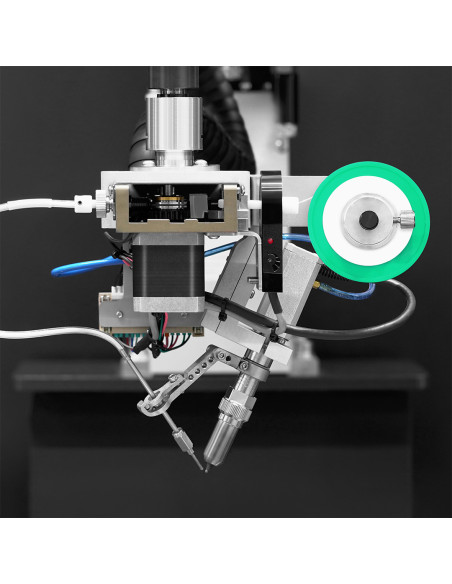

The YAMAHA SCARA type robotic arm ensures high precision positioning of the soldering head. The soldering itself with 150 W induction type heating will always supply the necessary heat for a quality joint.
Key features:

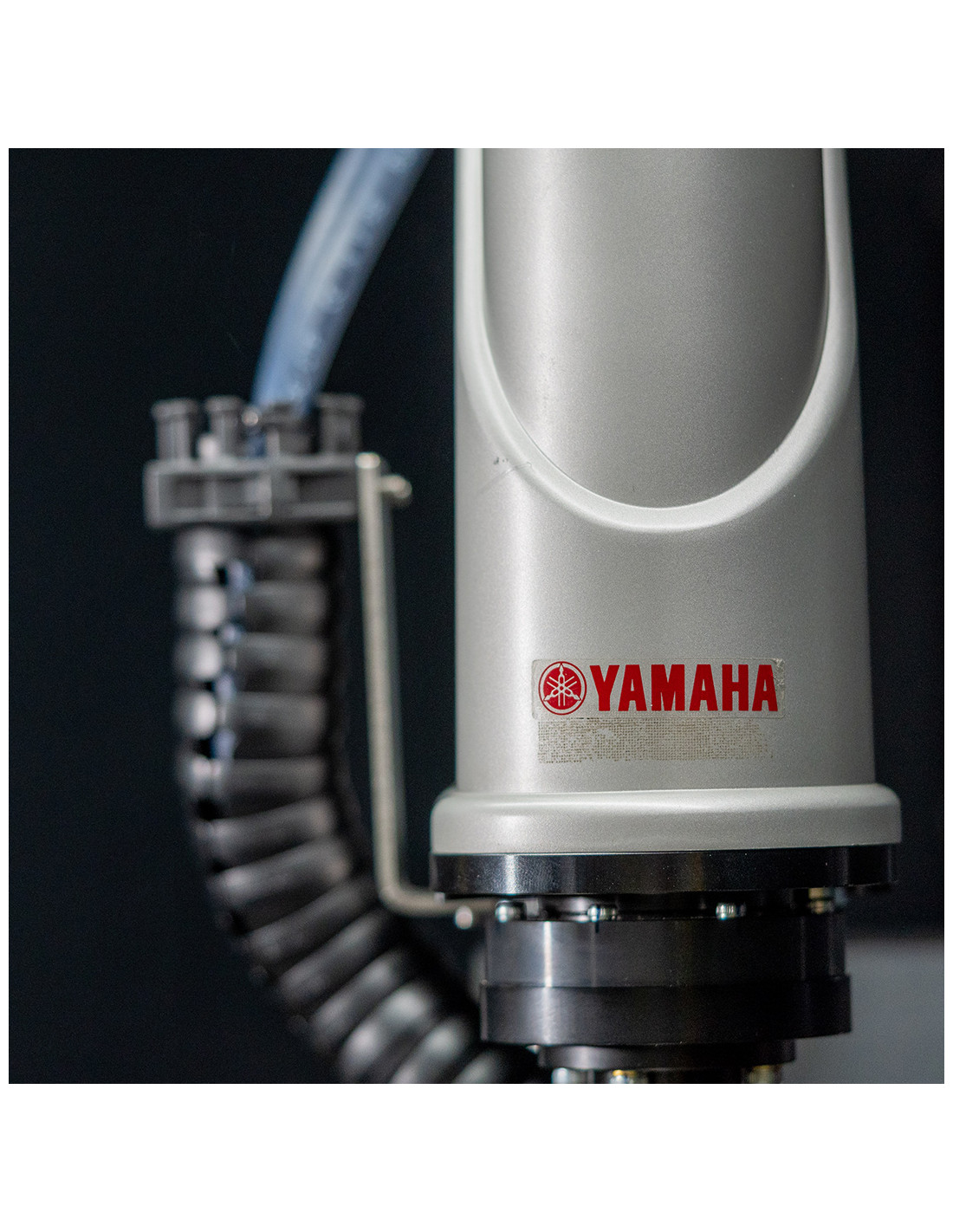

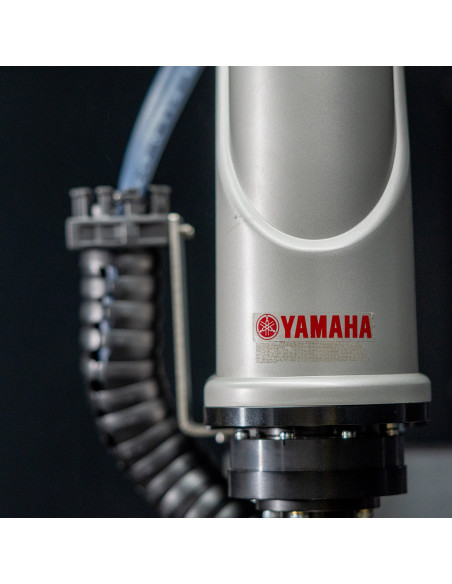

- YAMAHA SCARA robotic arm
- Automatic PCB positioning (mechanical or optical)
- 150 W induction soldering
- Up to 40 soldering tip types
- PLC controlled process parameters
- Integrated tip cleaner
- Controllable soldering profile for each point
- Optional nitrogen cover
Optional:
- Optical system for PCB positioning
- Optical system for post-process inspection
- Statistical data available via OPC UA protocol
- Option to introduce product traceability
- Option to replace the soldering head with one of the other functions (screwing, painting, dispensing)
