709D+
QUICK
In stock 1 pcs
5,120.00 CZK
Tax excluded
6,195.20 CZK Tax included

Product features
Station power:
1350 W
Temperature range:
100°C - 500°C hot air, 100°C - 480°C soldering iron
Supply voltage:
240 V
Range of spikes:
Series 960
Resistance of the tip to the ground:
2 Ohm
Leakage voltage:
2 mV
Type of station:
Soldering
Model series:
+ series
Air flow:
50l/min
Heating type:
Classic heating elements
Handle power:
70 W

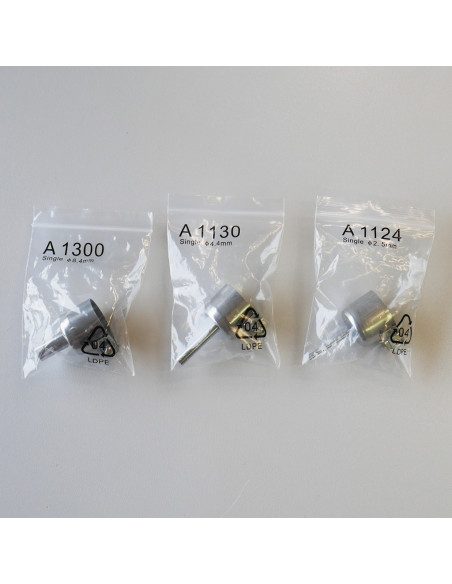

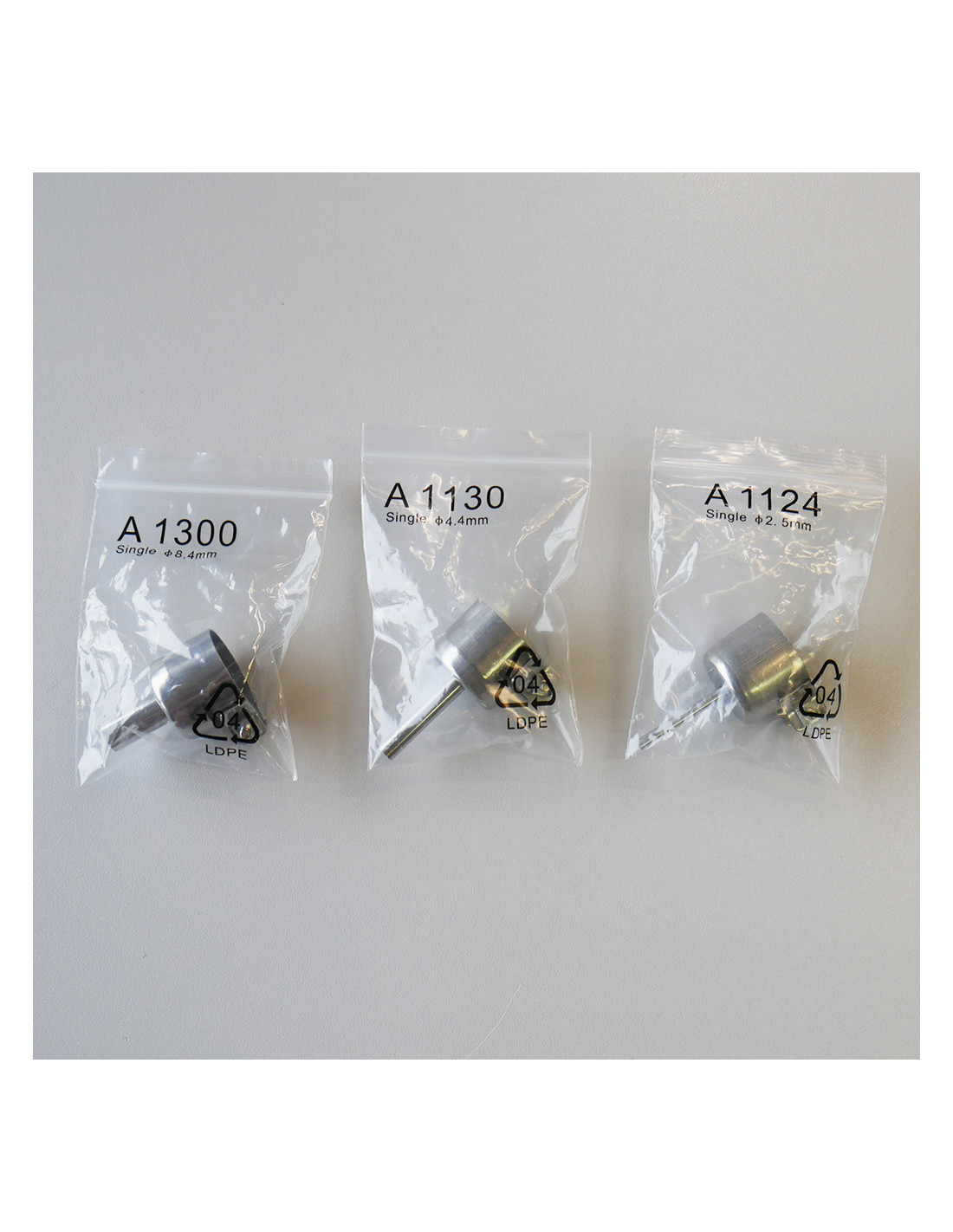

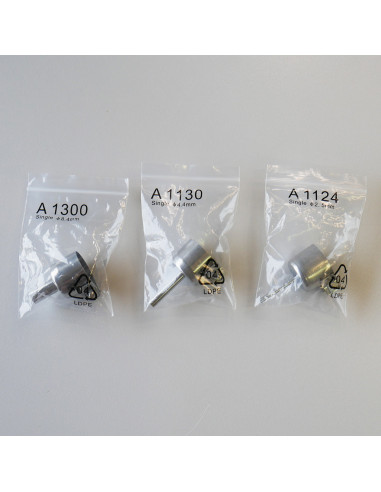

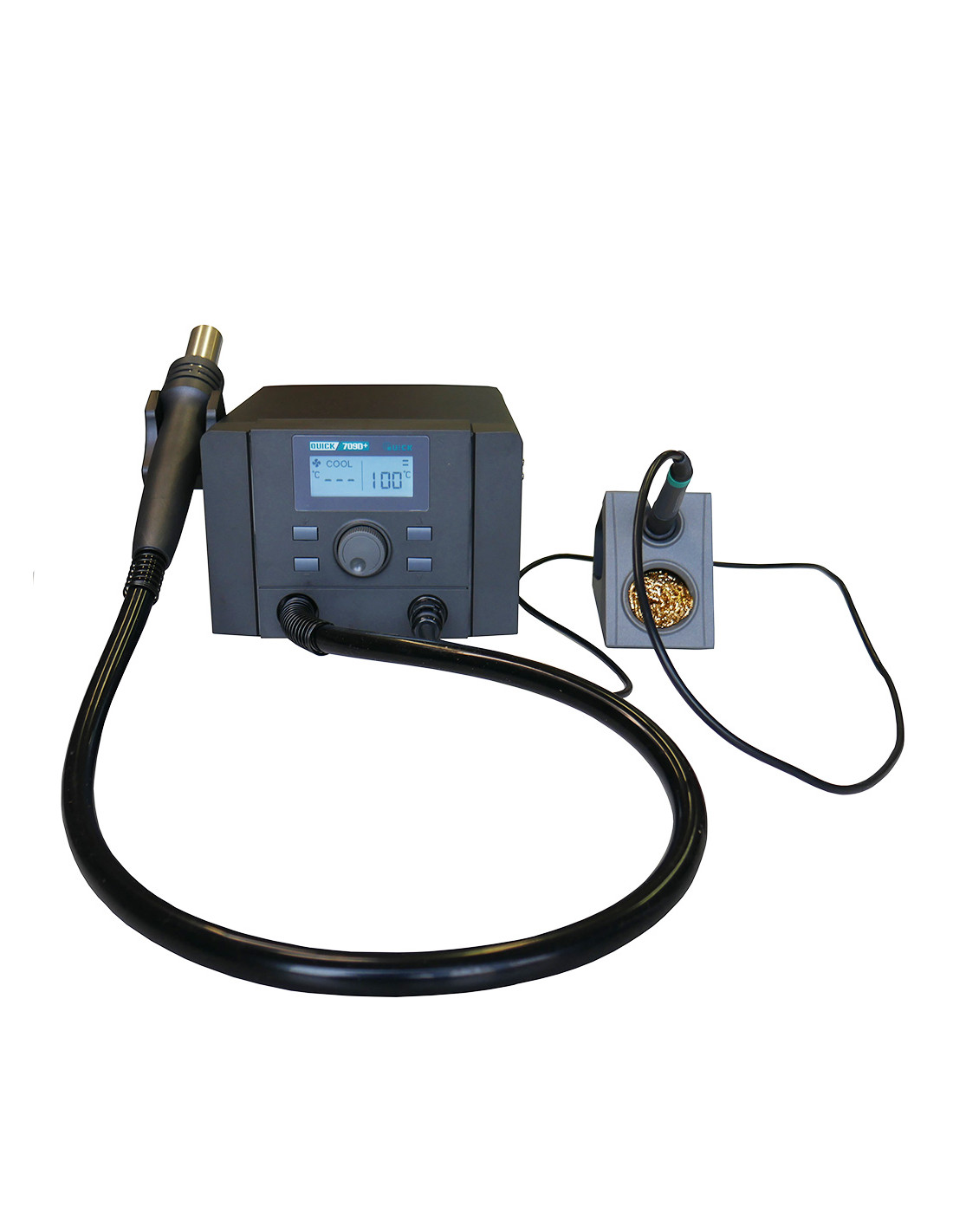

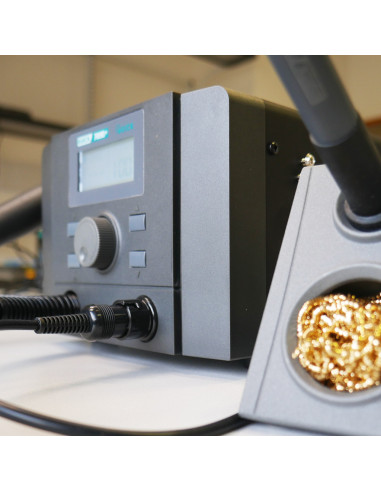

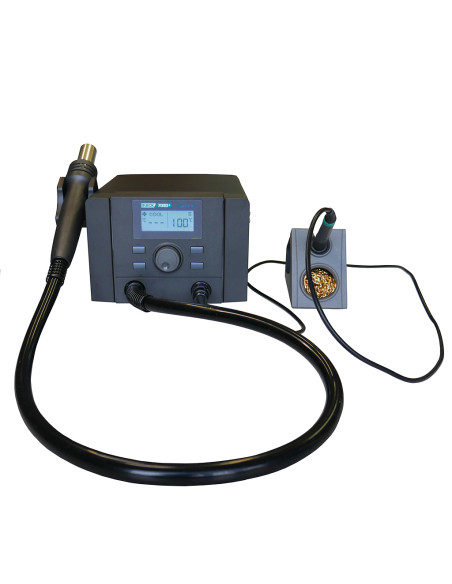

The QUICK709D+ combines a classic soldering station and a hot air soldering station. The hot-air soldering handle is stored in a holder directly on the body of the soldering station, the holder can be attached on both sides of the station and thus allows comfortable work for both right- and left-handed users. A magnetic switch in the handle ensures automatic recognition of the storage or retrieval of the handle. The automatic aftercooling function of the heating element protects it from damage and prolongs its life. The air flow is infinitely adjustable from 1-50l/minute. The Hot Air Handle is compatible with A-series nozzles.

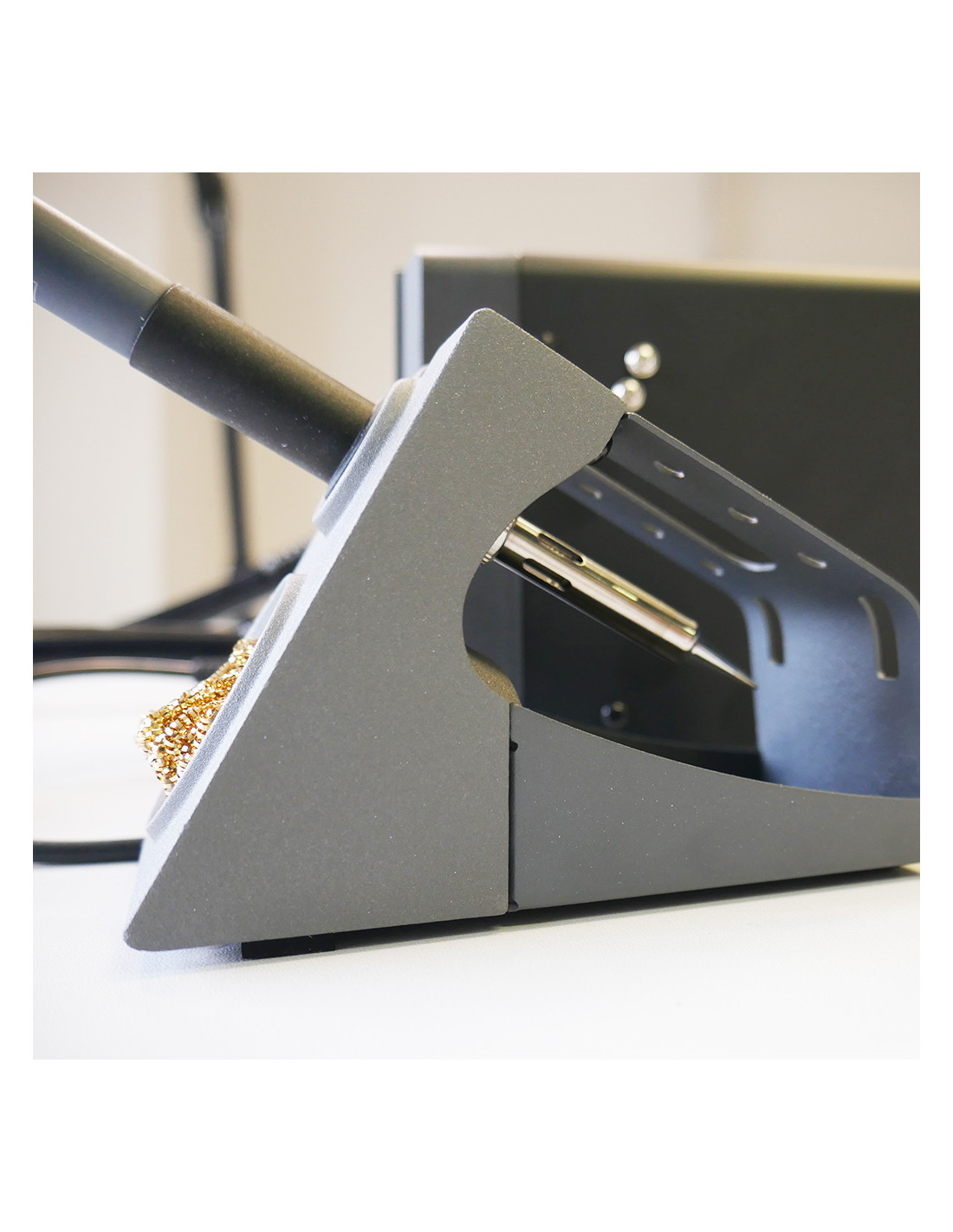

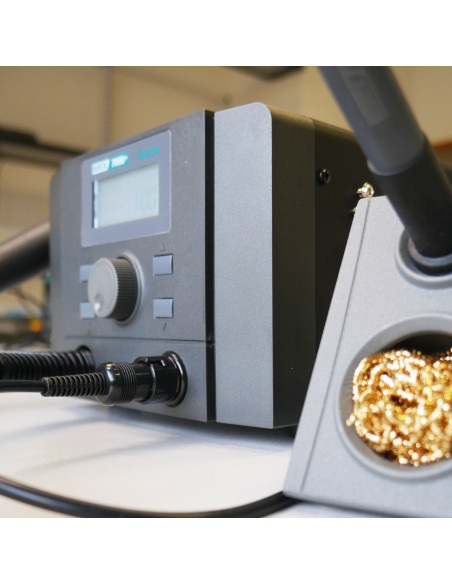

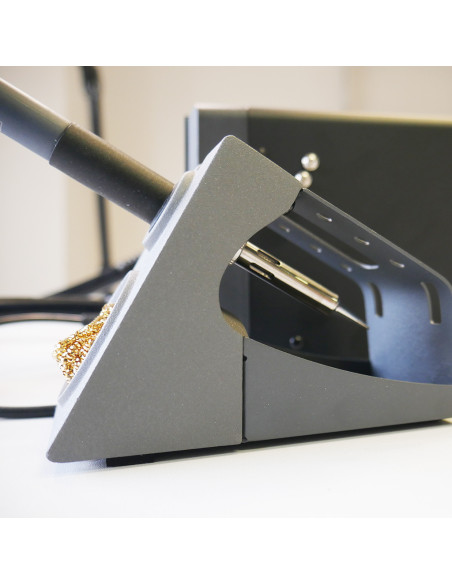

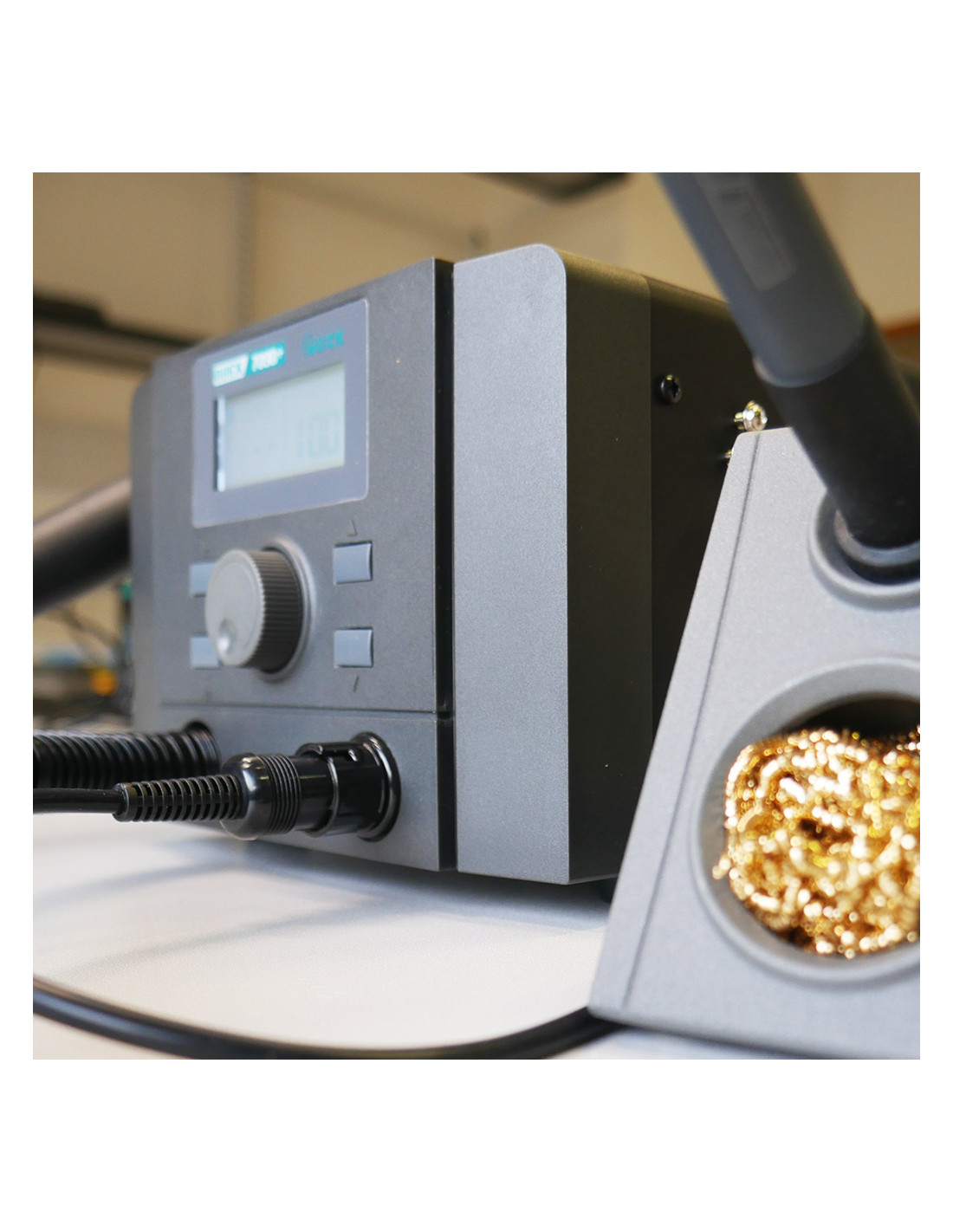

The Soldering Handle has a classic ceramic heating element and works with 960 series soldering tips. It is very light and easy to work with even when soldering small SMD components. The power of 70W is sufficient for most soldering rests. The station recognizes the placement of the handle in the stand, where according to the adjustable interval it automatically cools the soldering tip or, on the contrary, heats the soldering tip quickly when taking it out of the stand. The clear display shows the set or current parameters, which can be changed continuously by means of buttons.
The 709D+ soldering station can be used in service stations for repairing telephones, base plates, for rework on production lines or in school laboratories and workshops for research and development projects.
