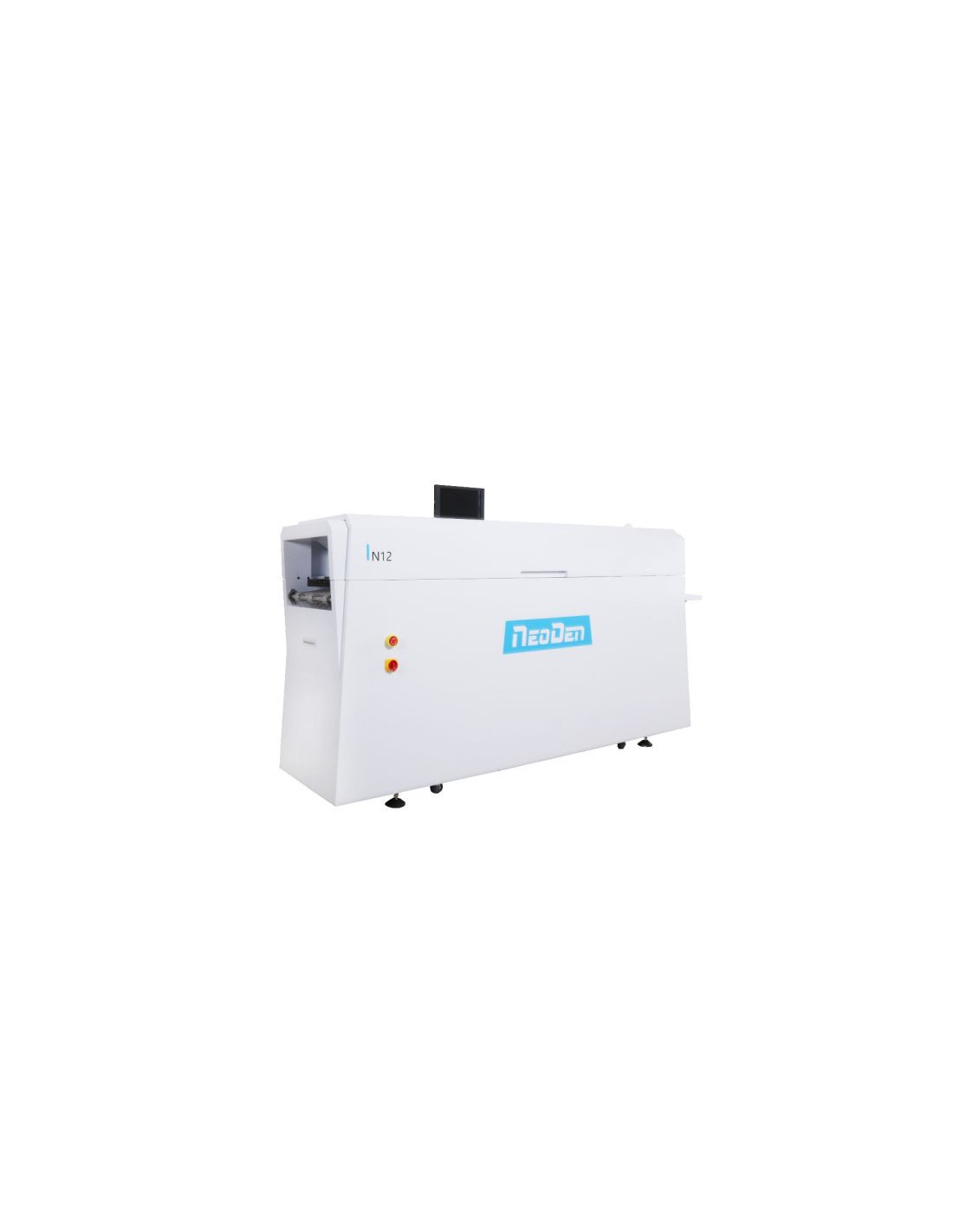

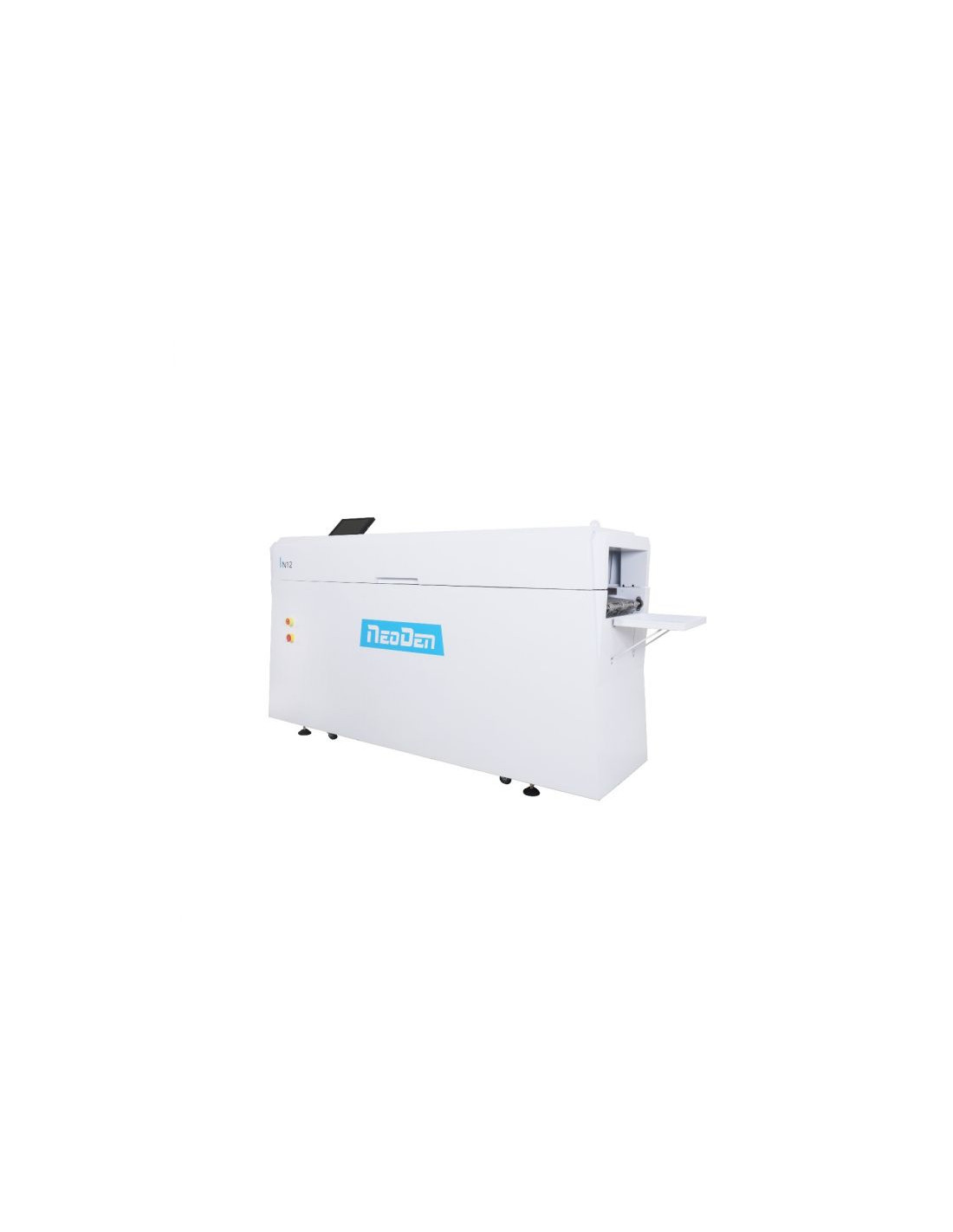

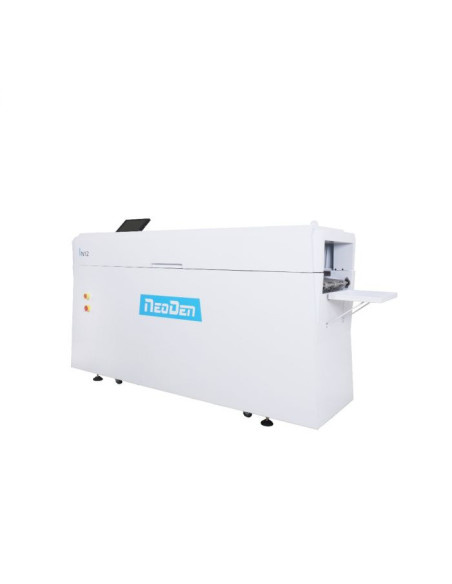

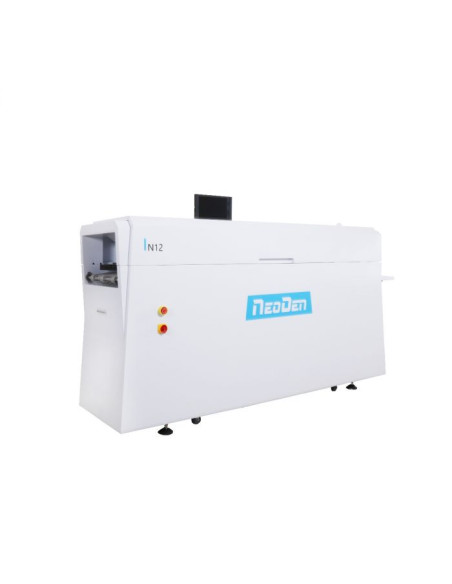

NeoDen IN12 continuous brazing furnace

Reference: NEODEN-IN12

Brand: NeoDen

delivery 25-30 days

281,000.00 CZK

Tax excluded

340,010.00 CZK Tax included

Maximum PCB size:

Limited only by width - 350 mm

Furnace type:

Interim

Power input:

4800 W

Heating type:

Convection

Furnace size without stand:

2300 mm x 650 mm x 1280 mm

Adjustable temperature:

Up to 300 °C

Number of zones:

Description

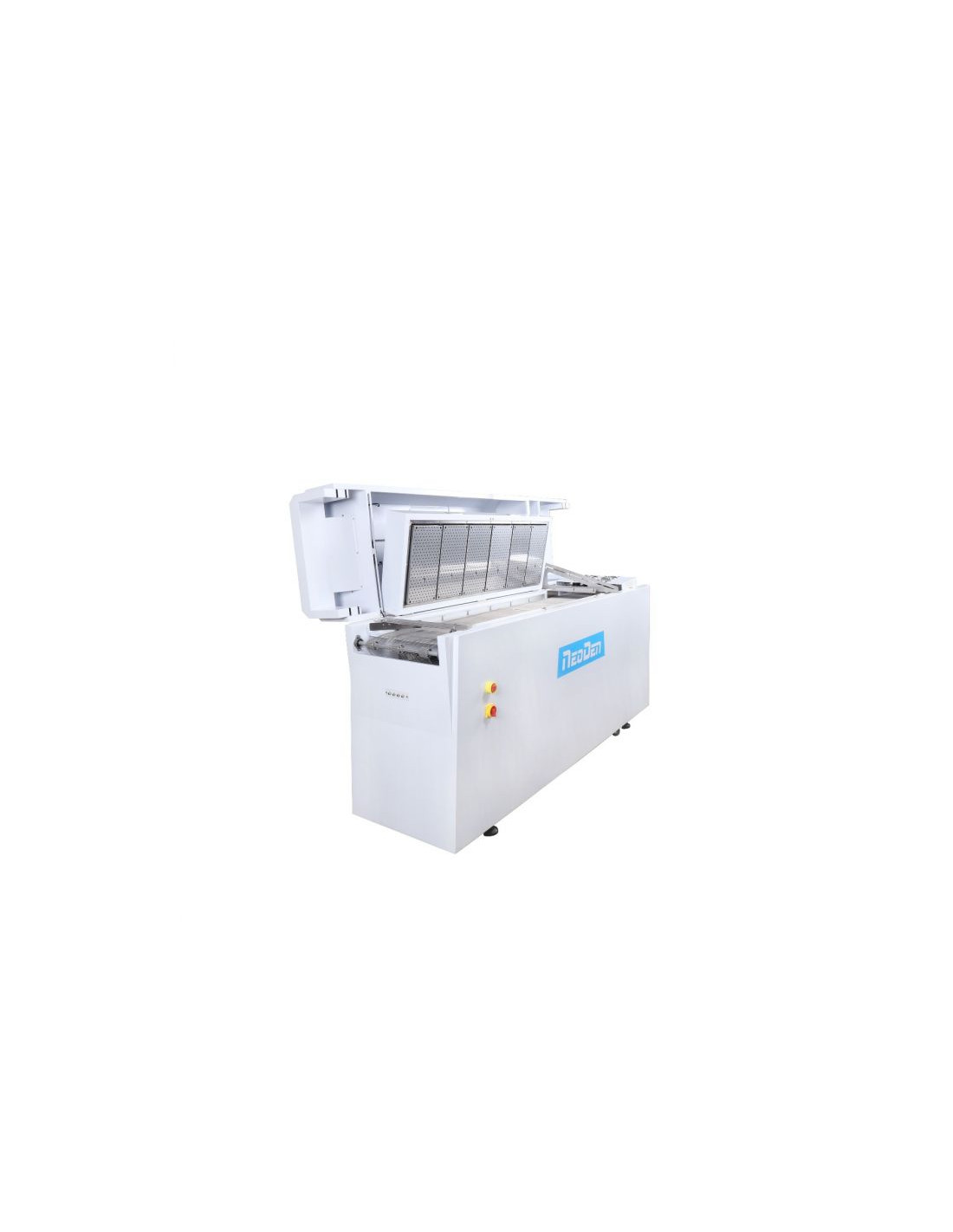

The NeoDen IN12 is a professional 12-zone furnace that enables soldering of printed circuit boards with fine reflow profiles. Each zone operates with an accuracy of +/- 1 °C. Heating is provided by both IR heating elements and hot air flow. The NeoDen IN12 Reflow Oven does not need to be connected to an external fume extraction system, as it is equipped with a built-in filtration system with HEPA filters containing activated carbon.

Key features:

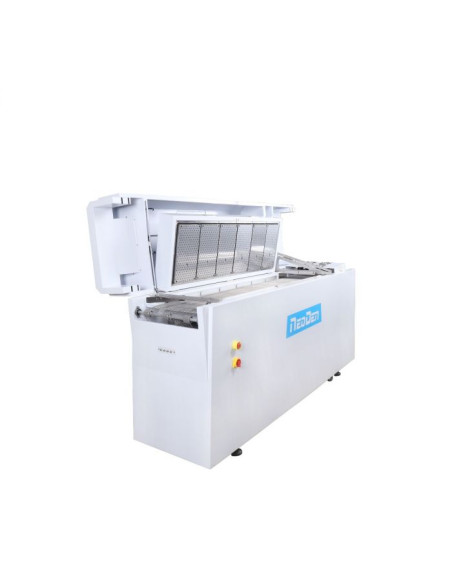

- Built-in filtration system (H12 HEPA + activated carbon)
- Hot air convection ensures even temperature distribution and uniform heating rates

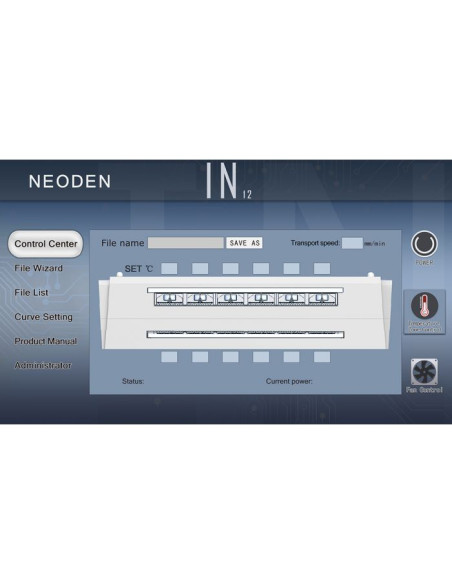

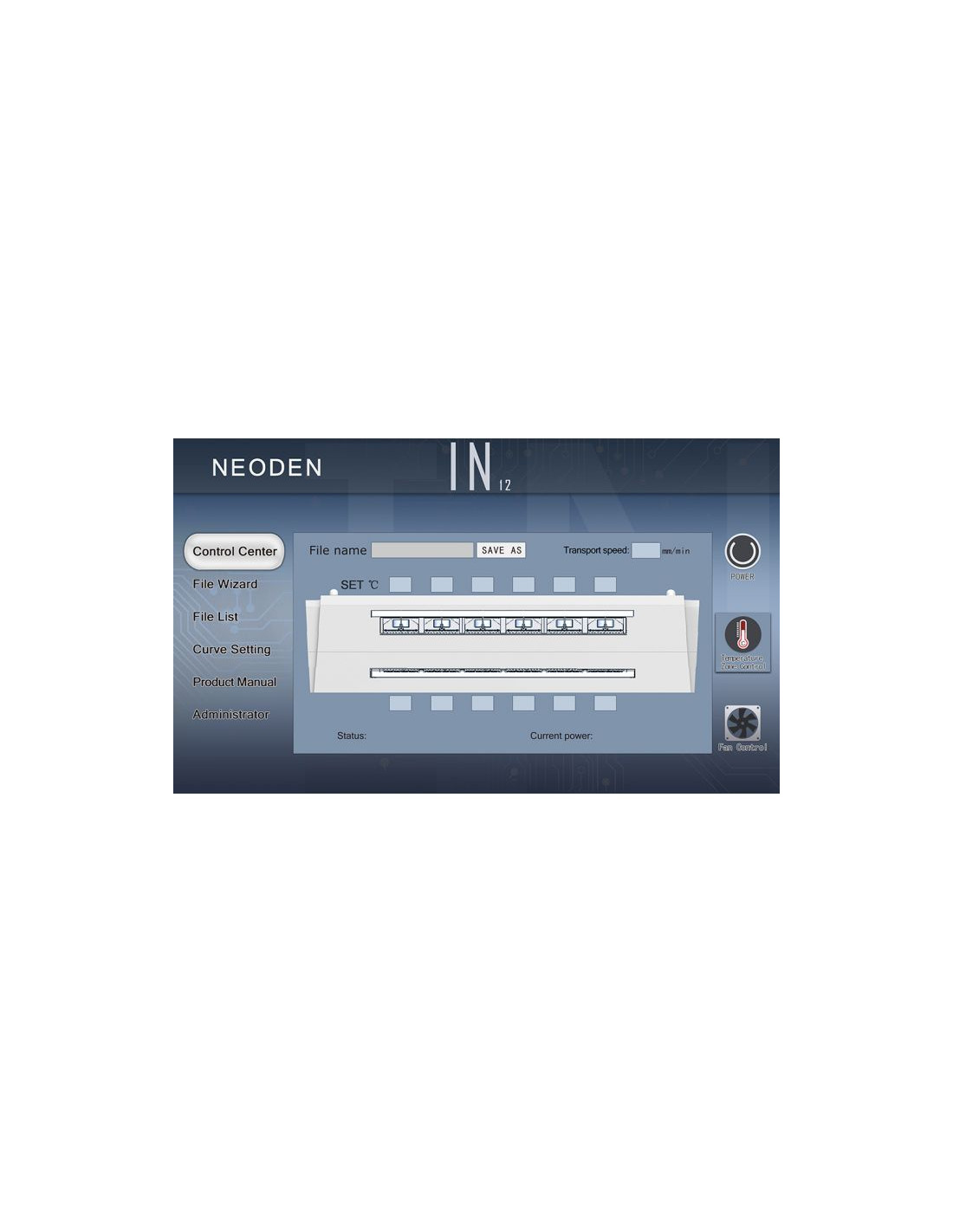

- Temperature profile can be displayed graphically in real time
