Product features
Supply voltage:
230 V
Power input:
3600 W
Maximum PCB size:
250 mm width, max. height 25 mm
Furnace type:
Interim
Heating type:
Convection
Furnace size without stand:
1540 x 570 x 340 mm
Number of zones:
4
Conveyor:
Stainless steel - wire, regulation 4 -60 cm/min
Warm-up time:
15 minutes

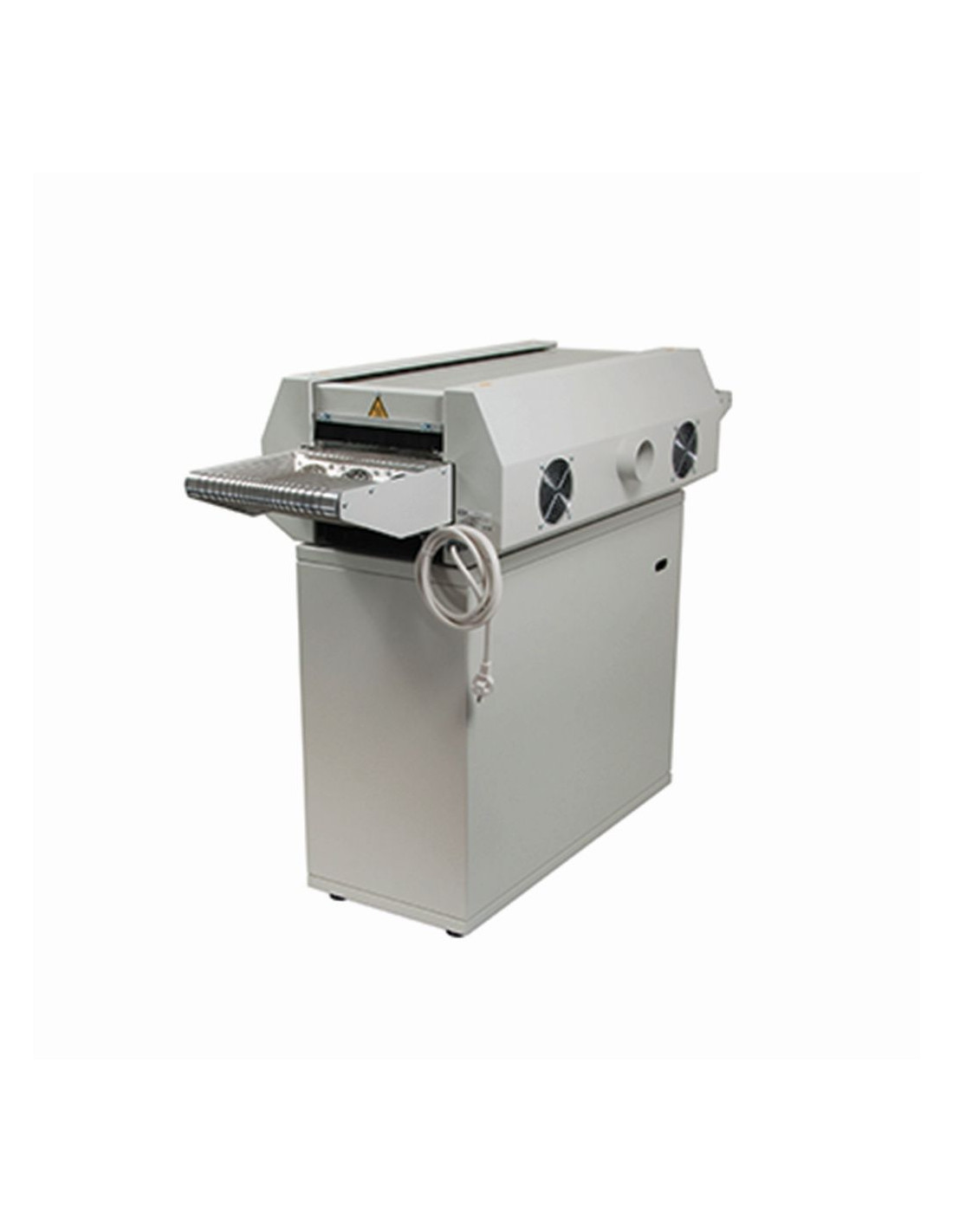

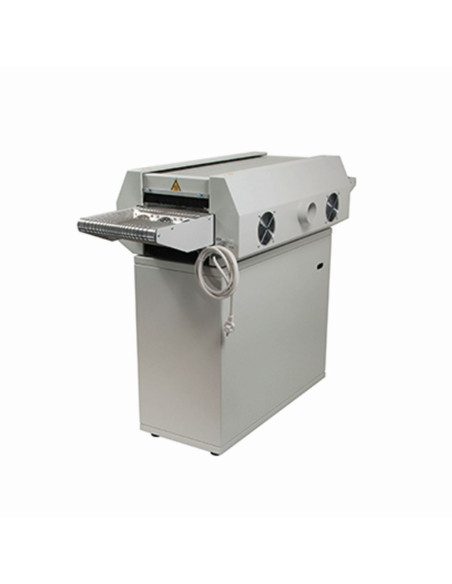

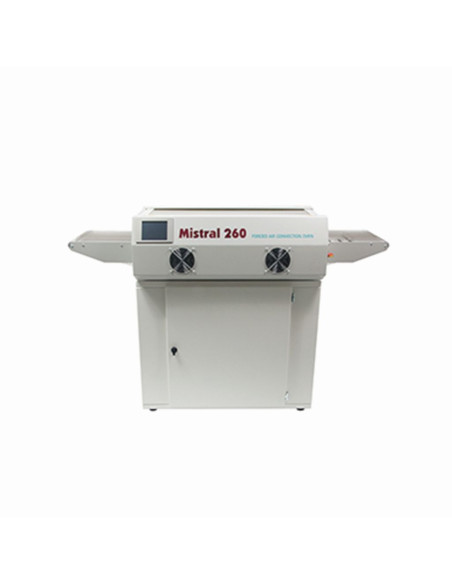

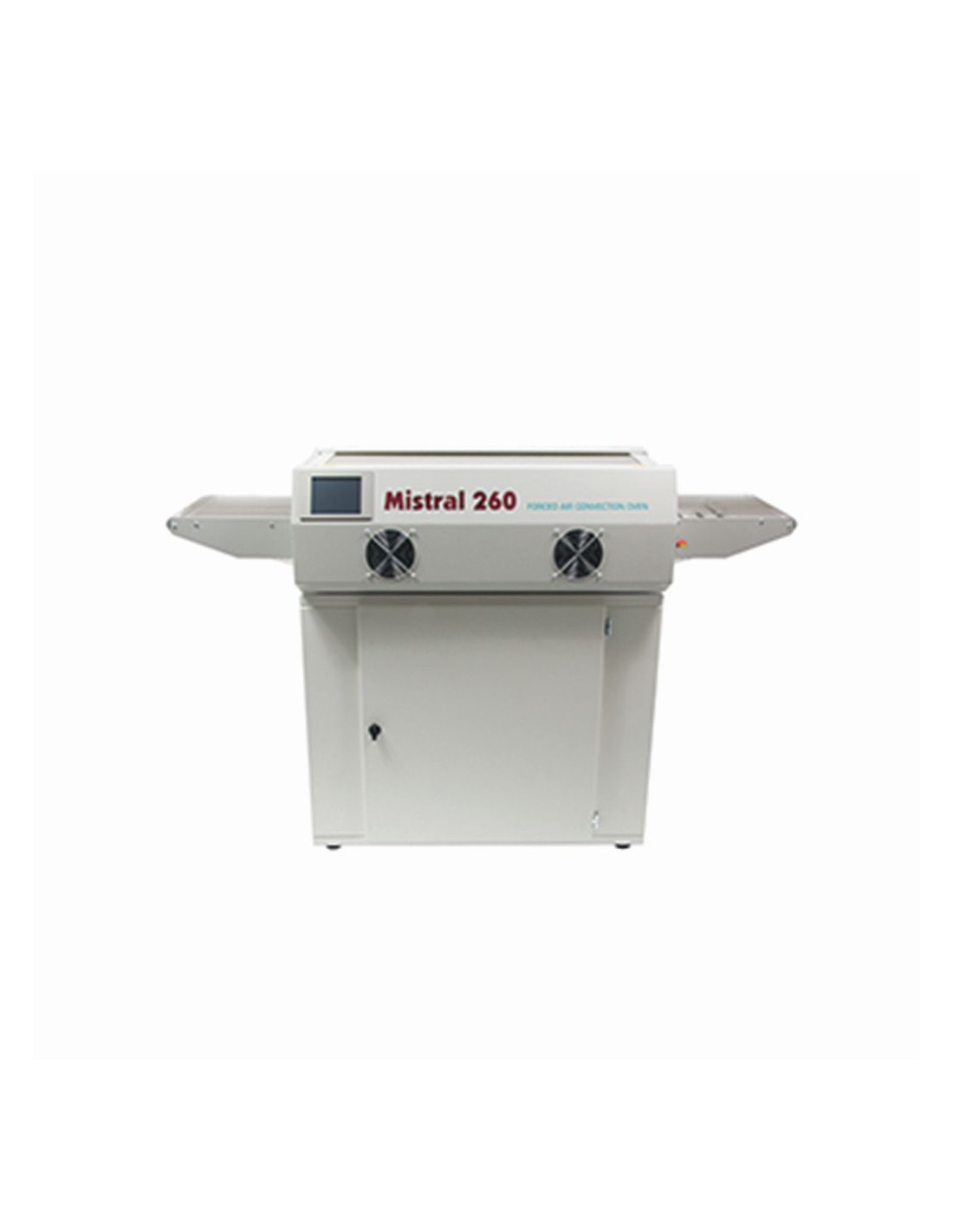

Mistral 260 is a very popular model of reflow oven. It is perfectly suited for small and medium sized production lines. It can be used with single phase power supplies!
The Mistral series convection soldering systems use recirculated hot air to achieve reflow at much lower temperatures than IR systems. With constant and uniform heating, a wide range of plate sizes will achieve reflow temperatures with the same thermal profile. By eliminating set-up time, your production line can operate at its maximum. With reduced energy consumption and carefully controlled airflow and exhaust, your business will only benefit from its introduction.

Key Features:
-Suitable for single and double-sided PCBs

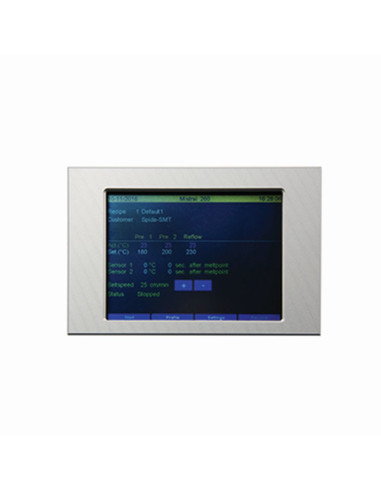

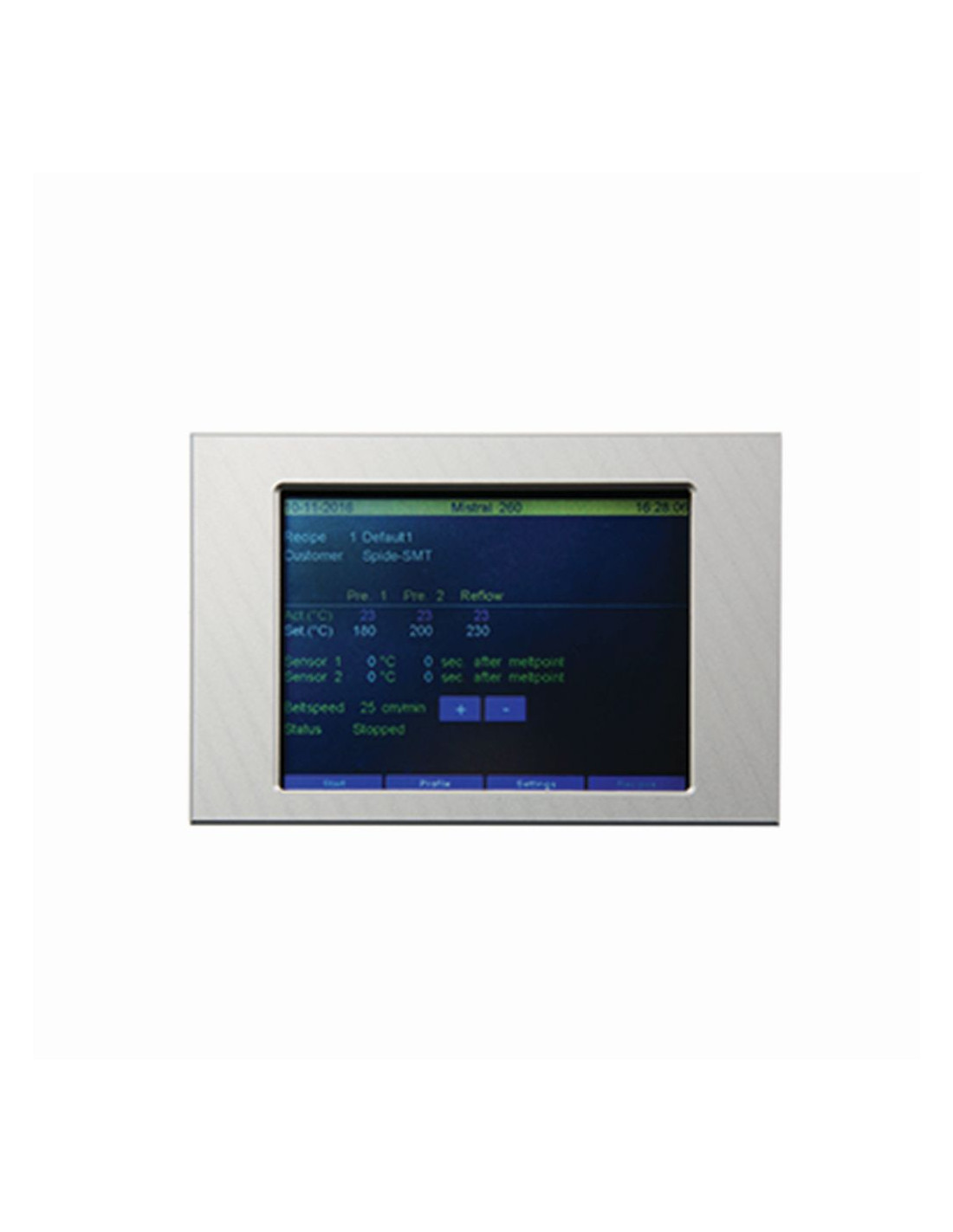

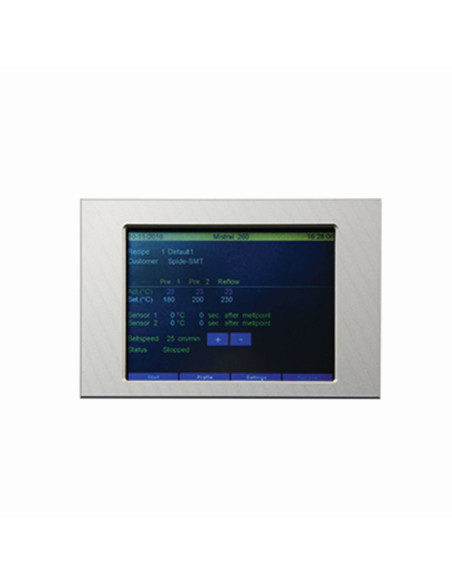

-Easy processing with a 5.7" LCD touch screen with intuitive user interface
-Forced airflow ensures even heating and prevents shading.
-3 Zones with a maximum temperature of up to 300°C. Can be used for lead-free soldering
-Optional stand available

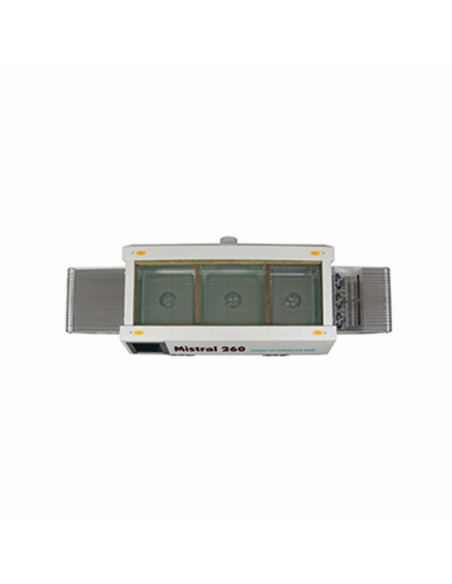

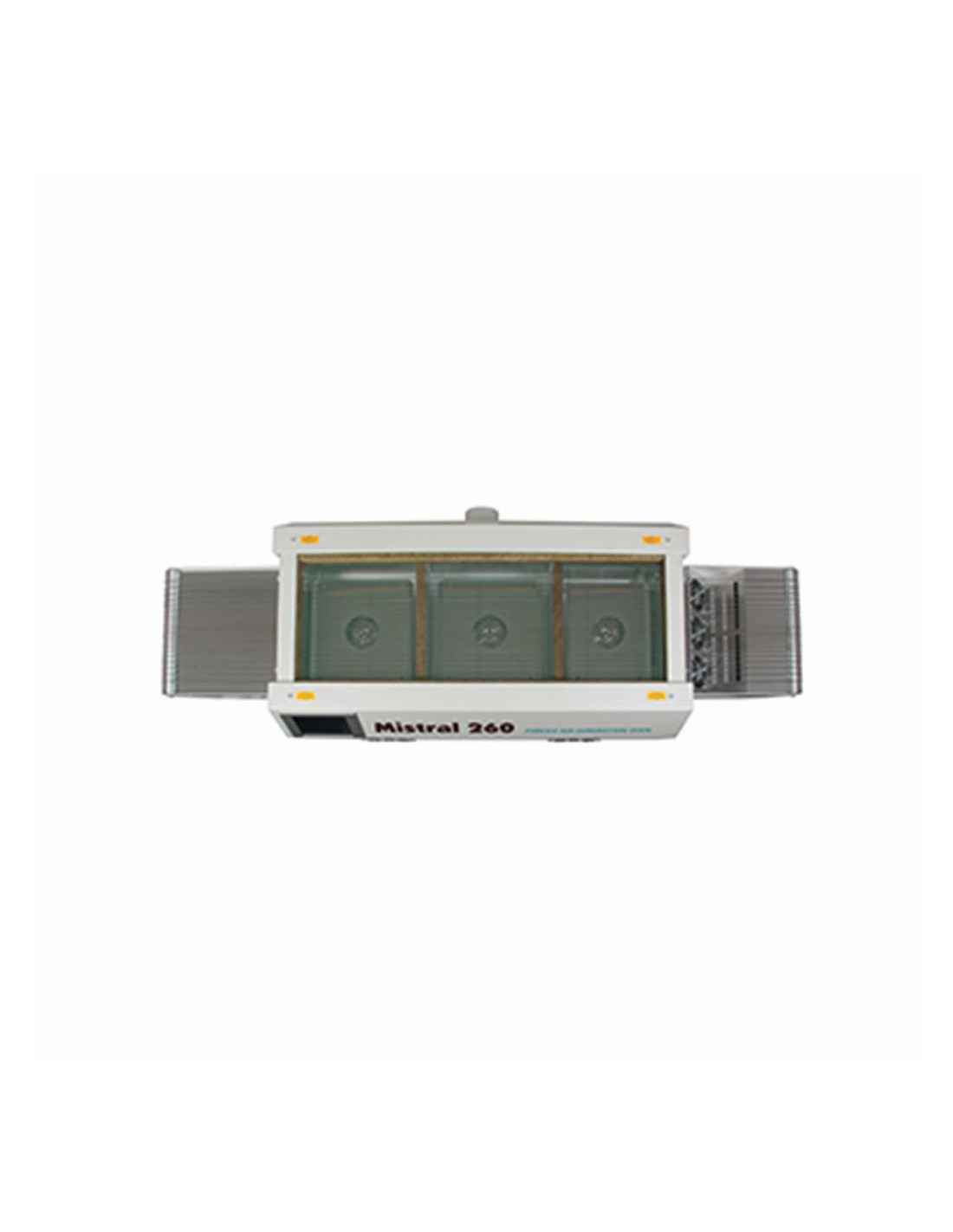

-Visual inspection of the reflow process through the top glass
-Two removable thermocouples for measuring substrate temperature.
-Control available via RS232 connection.
