Odpájecí stanice QUICK TV2
QUICK TV2 Disconnection Station
Odpájecí stanice QUICK TV2
QUICK TV2 Disconnection Station

QUICK TV2 Disconnection Station

TV2
QUICK
delivery 15-20 days
7,900.00 CZK
Tax excluded
9,559.00 CZK Tax included

Product features
Station power:
200 W
Temperature range:
300°C - 500°C
Supply voltage:
230 V
Range of spikes:
Disconnecting tips A1004, A1005, A1006
Resistance of the tip to the ground:
<2 Ohm
2 Ohm
Leakage voltage:
<2 mV
2 mV
Pump type:
Membrane
Type of station:
Unplugging
Model series:
TV2
Vacuum:
600 mmHg

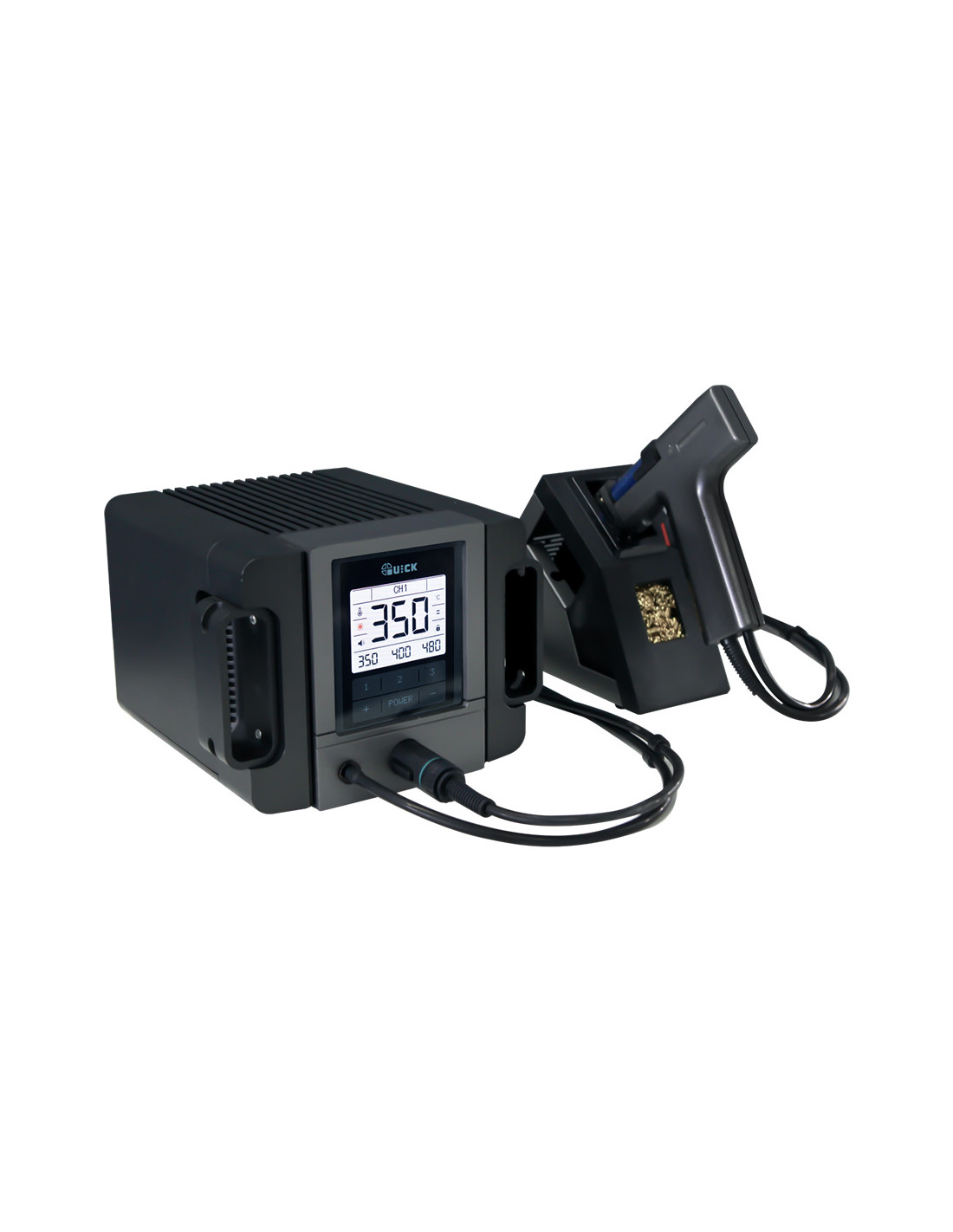

Station for desoldering components and simultaneous extraction of molten tin from holes or soldering surfaces.

The QUICK TV2 desoldering station does not require a compressed air connection. It is a stand-alone unit equipped with a powerful diaphragm pump that ensures perfect extraction of the tin, which is then collected in a spring filter. Precise digital temperature adjustment, excellent temperature stability and high performance allow even lead-free solder to be melted and extracted.

Extraction nozzles with internal diameters of 0.8 , 1 and 1.3mm are available. The nozzles are attached to the heating element by means of a drag nut. Changing them is quick and easy. The heating element is thermally insulated from the uncoupling tool and is characterized by high reliability and long service life.
