Resistance meter GIGALAB EVO

GIGALAB EVO is a universal resistance measuring instrument in EPA. It is used for measuring ESD of floors, work surfaces, packaging materials, ESD of clothing, chairs, work equipment and other equipment.

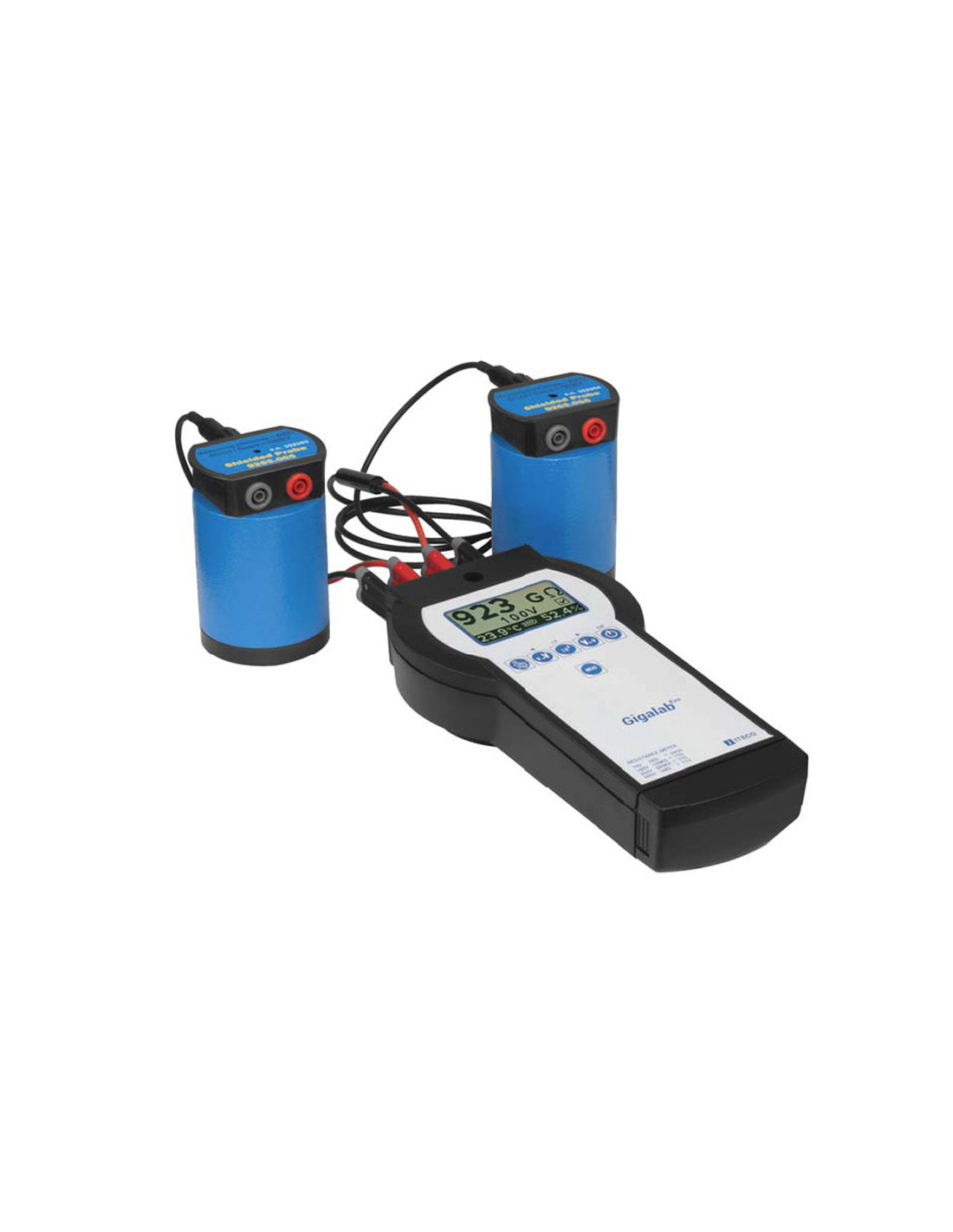

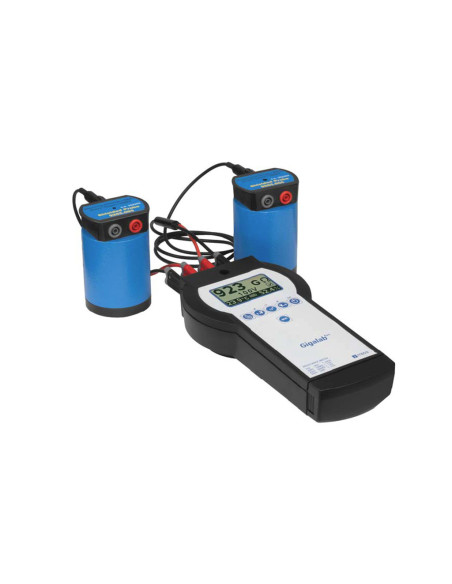

The measuring instrument includes a thermometer and hygrometer, probes and wiring. Large measuring range, possibility of storing measurements in memory are the main features. Together with the field meter, the GIGALAB EVO is the most important equipment for ESD coordinators to perform internal ESD audits and control measurements.

- Meets IEC EN 61340-5-1
- Measures resistance between two points (Rp-p), resistance to ground (Rg), surface resistance (Rs), temperature and humidity (RH)

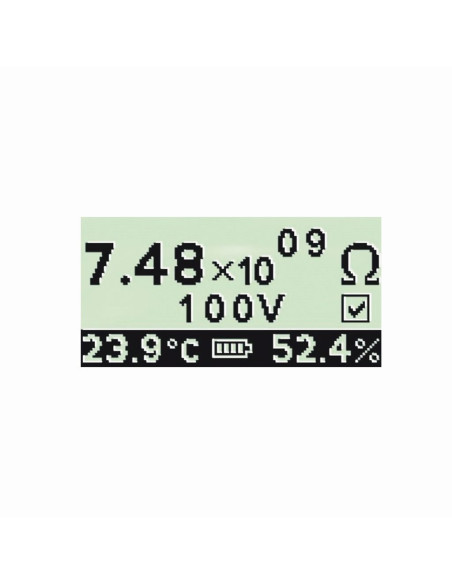

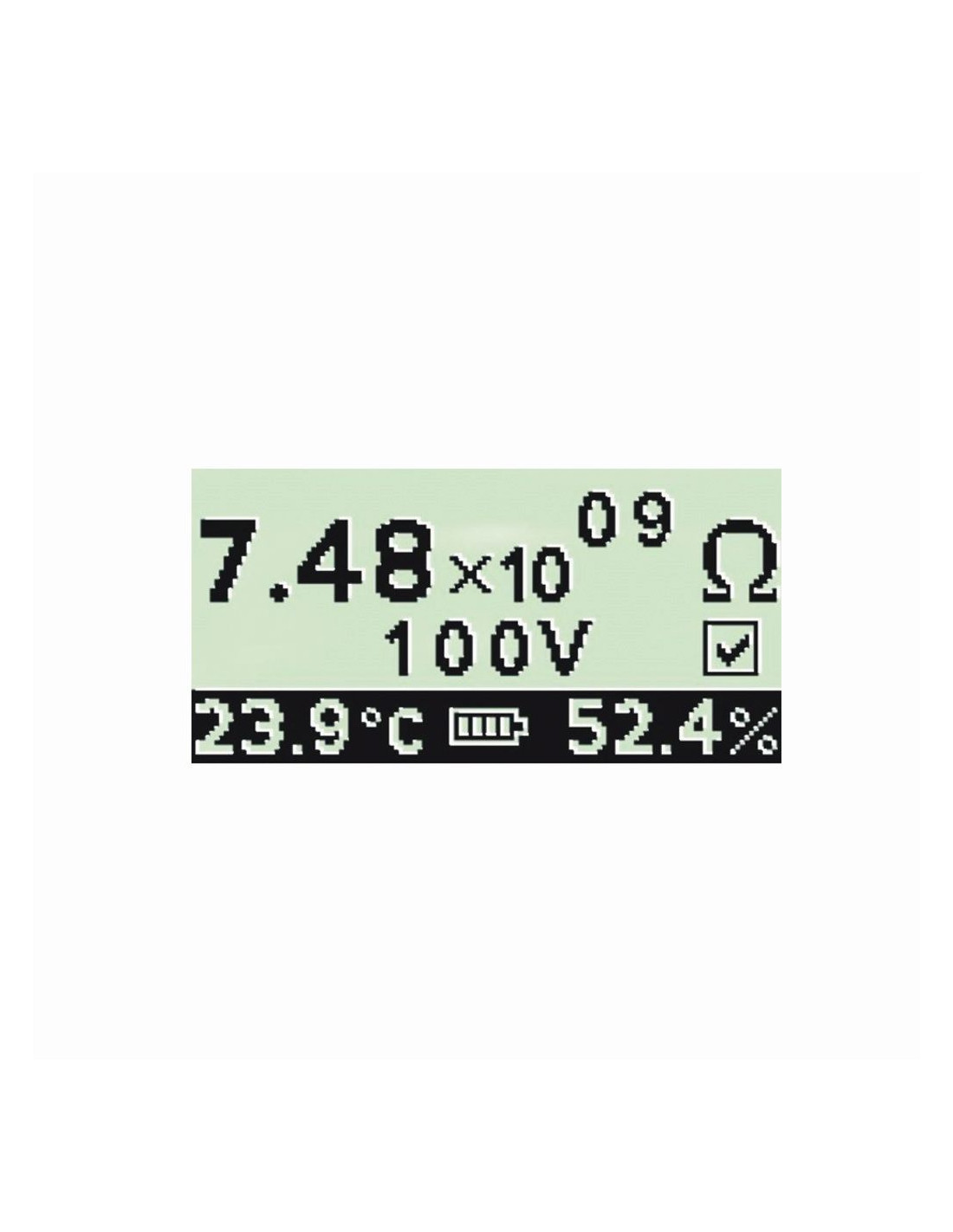

- Accurate LCD display 128 x 64 pixels, 68 x 51 mm

Measurement ranges:
10V - 1 KOhm to 50 GOhm
100V - 100 KOhm to 1 TOhm
250V - 500 KOhm to 1 TOhm
500V - 1 MOhm to 1 TOhm

Accuracy:
10V - ±5% ±0.6% to GOhm
100V - ±5% ±0.06% to GOhm
100V - ±5% ±0.045% to GOhm
500V - ±5% ±0.03% to GOhm
