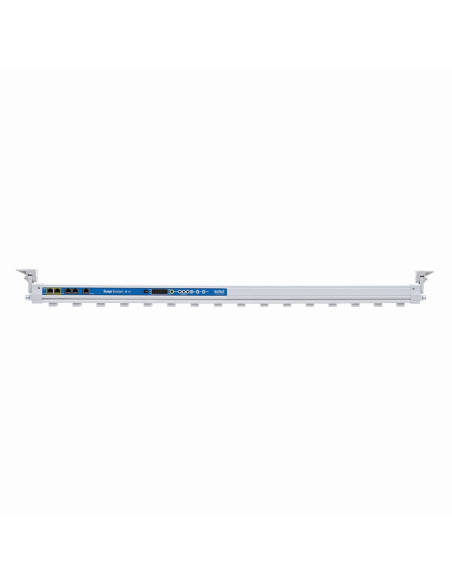

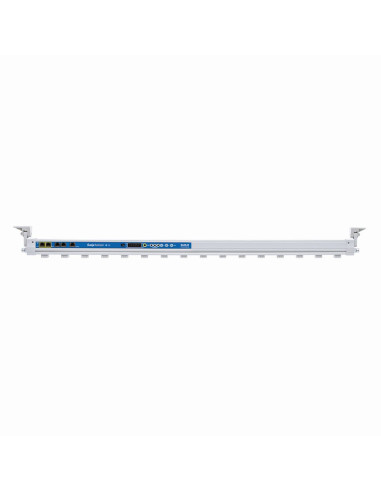

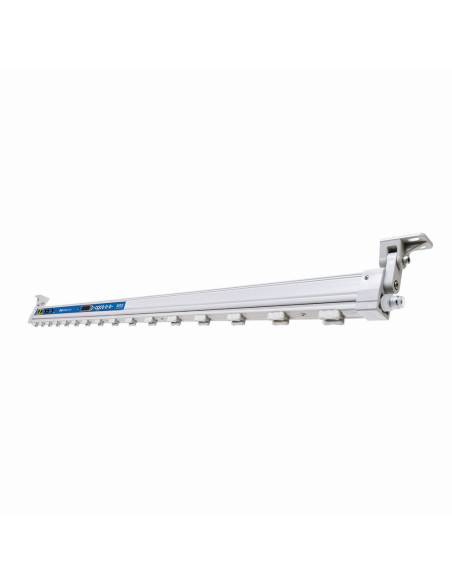

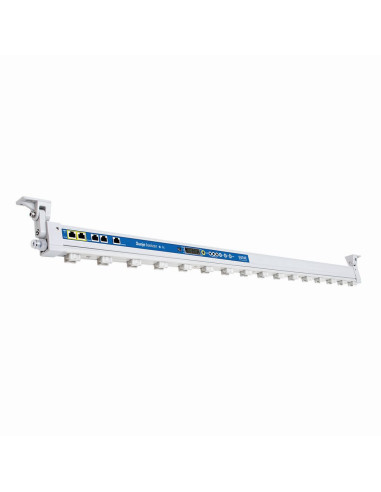

Ionization rod SIB4-2300A

The SIB4A series programmable bar ionizers offer various digital control systems and remote control. Compared to the SIB4, the SIB4A bars have an Auto Ion volume function, i.e. automatically controlled ion balance. The SIB4A rods are suitable for cleanroom applications (CLEANROOM). The emitters are built inside the nozzle, so there is not as much dirt adhering to them, thus ensuring optimum ion generation. An advantage is the possibility to connect the rods to a central monitoring system (RMSU), which allows on-line control of ionization and generation of feedback reports.

-The rod does not need an external power supply (optional SBP-RD)
-Easy installation and maintenance
-Long-life titanium emitters
-Ion generation method: High-voltage corona AC discharge (24V DC input)
-Replaceable cartridge emitters inside the rod body prevent dirt adhesion
-Patented nozzle shape minimizes air consumption, maximizes air pressure
-Alarms: Unusual high voltage, low ionization, emitter cleaning (cleaning period can be adjusted)
-Low air consumption
-Built-in ground wire protects against environmental contamination, improves ion balance and charge decay time
-Volatile remote control, SBP-RD and RMSU power supply
